Bluetooth® UNIT REMOVAL/INSTALLATION

CAUTION:
  • The audio unit communicates with the Bluetooth® unit and records the presence/non-presence of the Bluetooth® unit when the ignition is switched to ACC or ON (engine off or on) after connecting the negative battery cable.
  • If the commander switch is installed with the negative battery cable connected when the audio unit records that there is no Bluetooth® unit, the Bluetooth® unit does not operate.
  • For the Bluetooth® unit installation/removal, disconnect the negative battery cable, switch the ignition to ACC or ON (engine off or on) after the servicing is completed, and the audio unit records the presence/non-presence of the Bluetooth® unit.
NOTE:
  • The Bluetooth® pairing information recorded in the Bluetooth® unit cannot be written to a new Bluetooth® unit. Therefore, the Bluetooth® pairing formation will be eliminated if the Bluetooth® unit is replaced. Before replacing the Bluetooth® unit, explain to the customer that the Bluetooth® pairing resetting is required.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the clip.

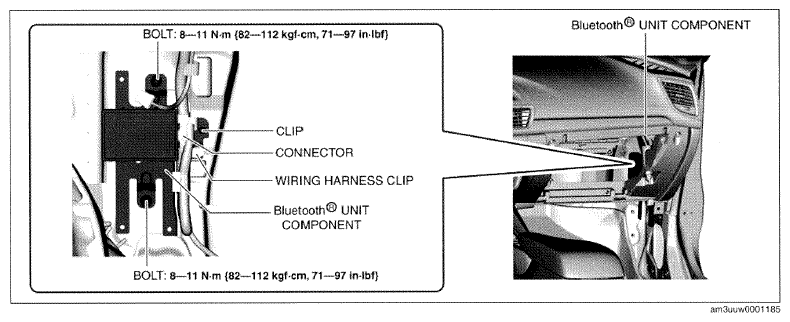

    Fig 1: Bluetooth Unit Component, Connector And Clip With Torque Specifications
    G09784288Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts.
  5. Disconnect the connector.
  6. Remove the wiring harness clip.
  7. Remove the Bluetooth® unit component.
  8. Remove the screws.
  9. Remove the Bluetooth® unit.
  10. Install in the reverse order of removal.

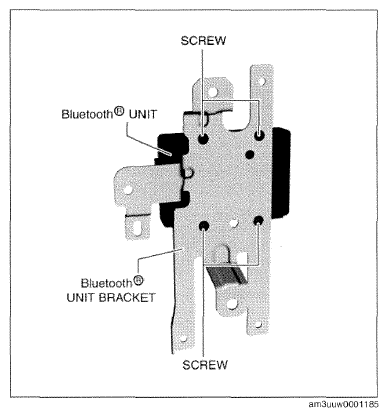

    Fig 2: Identifying Bluetooth Unit Component, Connector And Screw
    G09784289Courtesy of MAZDA MOTORS CORP.
