AudioPilot®2 MICROPHONE REMOVAL/INSTALLATION

NOTE:
  • AudioPilot®2 is a registered trademark of Bose Corporation.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Disconnect the connector.
  3. Remove the nut.
  4. Remove the AudioPilot®2 microphone.
  5. Install in the reverse order of removal.

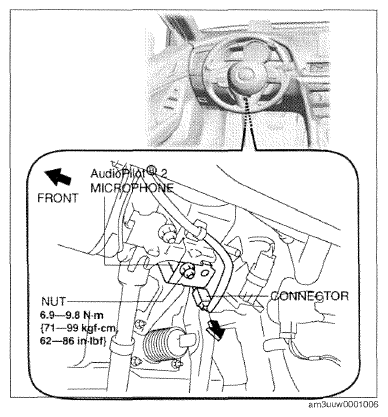

    Fig 1: Disconnecting Audio Pilot 2 Microphone Connector With Torque Specifications
    G09784200Courtesy of MAZDA MOTORS CORP.
