Wire Removal Note

  1. Remove in the order indicated in the figure.

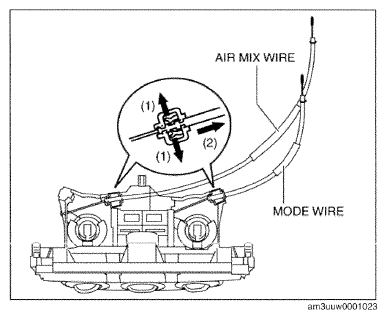

    Fig 1: Removing Climate Control Unit Air Mix Wire
    G09771408Courtesy of MAZDA MOTORS CORP.
