Using Tire Pressure Monitoring System Set Switch
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Park the vehicle on safe, level ground.
- Adjust all four tire pressures to the specification while the tires are cold. (See
WHEEL AND TIRE SPECIFICATION .)CAUTION:
- Cold tires means leaving the vehicle for 1 h or, if the vehicle is driven, do so within 1.6 km {0.99 mile}.
- Switch the ignition ON (engine off or on).

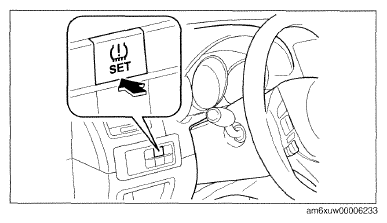

- Press and hold the tire pressure monitoring system set switch.
- Press and hold the tire pressure monitoring system set switch until the tire pressure monitoring system warning light flashes 1 or 2 times and the indicator alarm sounds 1 time.NOTE:
- When the tire pressure monitoring system initialization is performed, learning initiates. Learning is completed by driving the vehicle for approx. 20 min.
- While the tire pressure monitoring system is undergoing learning, its primary functions do not operate.
