Trunk Lid Light Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Fogging or condensation on the inside of the trunk lid light may occur, however, it is a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the trunk lid lights and has no effect on the light performance. Fogging or condensation will dissipate when the temperature inside the trunk lid lights rises after illuminating the back-up lights and a period of time has elapsed.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION .)
  3. Remove the trunk lid garnish. (See TRUNK LID GARNISH REMOVAL/INSTALLATION .)
  4. Disconnect the connectors.

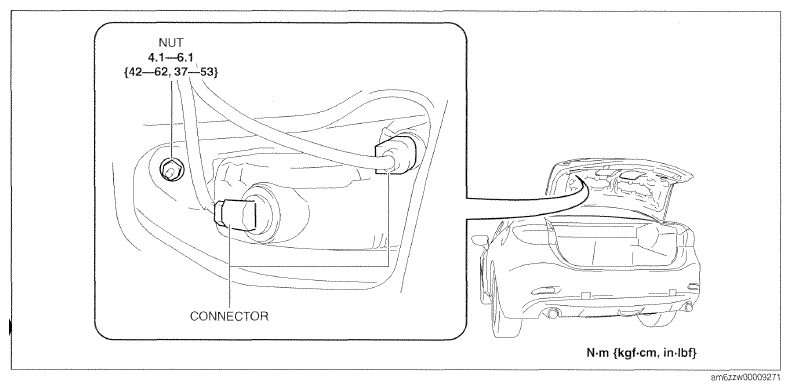

    Fig 1: Trunk Lid Trim Connector With Torque Specifications
    G09788145Courtesy of MAZDA MOTORS CORP.
  5. Remove the nut.
  6. Insert a flathead screwdriver into the service hole in the position shown in the figure.

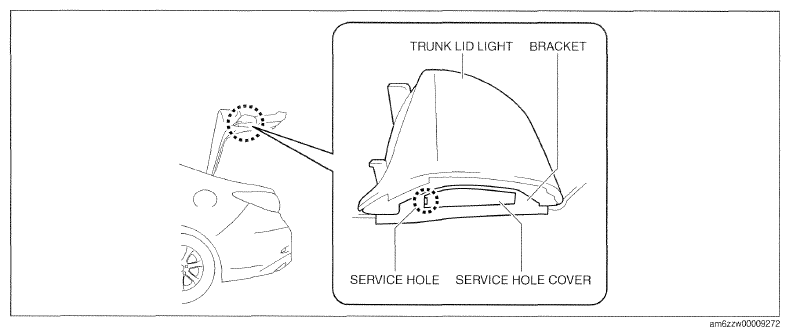

    Fig 2: Identifying Service Hole Cover And Trunk Lid Trim
    G09788146Courtesy of MAZDA MOTORS CORP.
  7. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure to detach the service hole cover tab from the bracket.
  8. Pull out the service hole cover in the direction of the arrow (2) shown in the figure and pull out the service hole cover hook from the bracket.
  9. Remove the service hole cover.
    Fig 3: Removing Service Hole Cover
    G09788147Courtesy of MAZDA MOTORS CORP.
  10. Insert the flathead screwdriver into the clearance between bracket tab A and the trunk lid light shown in the figure.
    Fig 4: Identifying Flathead Screwdriver Insertion Position And Tab
    G09788148Courtesy of MAZDA MOTORS CORP.
  11. Move the flathead screwdriver in the direction of arrow (3) shown in the figure to press tab A, and pull the bracket in the direction of arrow (4) to detach tab A from the trunk lid light.
    Fig 5: Detaching Tab From Trunk Lid Light
    G09788149Courtesy of MAZDA MOTORS CORP.
  12. Insert the flathead screwdriver into the clearance between bracket tab B and the trunk lid light shown in the figure.
    Fig 6: Identifying Flathead Screwdriver Insertion Position And Tab
    G09788150Courtesy of MAZDA MOTORS CORP.
  13. Move the flathead screwdriver in the direction of arrow (5) shown in the figure to press tab B, and pull the bracket in the direction of arrow (6) to detach tab B from the trunk lid light.
    Fig 7: Detaching Tab B From Trunk Lid Light
    G09788151Courtesy of MAZDA MOTORS CORP.
  14. Insert the flathead screwdriver into the clearance between bracket tab C and the trunk lid light shown in the figure.
    Fig 8: Identifying Flathead Screwdriver Insertion Position And Tab
    G09788152Courtesy of MAZDA MOTORS CORP.
  15. Move the flathead screwdriver in the direction of arrow (7) shown in the figure to press tab C, and pull the bracket in the direction of arrow (8) to detach tab C from the trunk lid light.
    Fig 9: Detaching Tab C From Trunk Lid Light
    G09788153Courtesy of MAZDA MOTORS CORP.
  16. Insert the flathead screwdriver into the clearance between bracket tab D and the trunk lid light shown in the figure.
    Fig 10: Identifying Flathead Screwdriver Insertion Position And Tab
    G09788154Courtesy of MAZDA MOTORS CORP.
  17. Move the flathead screwdriver in the direction of arrow (9) shown in the figure to press tab D, and pull the bracket in the direction of arrow (10) to detach tab D from the trunk lid light.
    Fig 11: Detaching Tab D From Trunk Lid Light
    G09788155Courtesy of MAZDA MOTORS CORP.
  18. Remove the bracket.
  19. To prevent scratches or damage, affix protective tape to the position shown in the figure.
    CAUTION:
    • When the trunk lid light is removed from the trunk lid, perform the procedure after affixing protective tape to the trunk lid. Otherwise, the trunk lid could interfere with the trunk lid light and cause scratching or damage to the trunk lid.
    Fig 12: Identifying Trunk Lid Light And Bracket
    G09788156Courtesy of MAZDA MOTORS CORP.
    Fig 13: Identifying Trunk Lid Light And Protective Tape
    G09788157Courtesy of MAZDA MOTORS CORP.
  20. Move the trunk lid light in the direction of the arrow (11) shown in the figure to pull out the hook from the trunk lid.

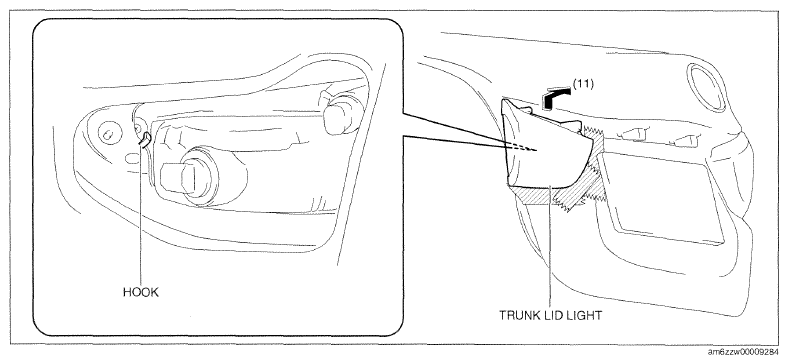

    Fig 14: Removing Trunk Lid Light
    G09788158Courtesy of MAZDA MOTORS CORP.
  21. Pull the trunk lid light in the direction of the arrow (12) shown in the figure and pull out the pins and stud bolt from the trunk lid.

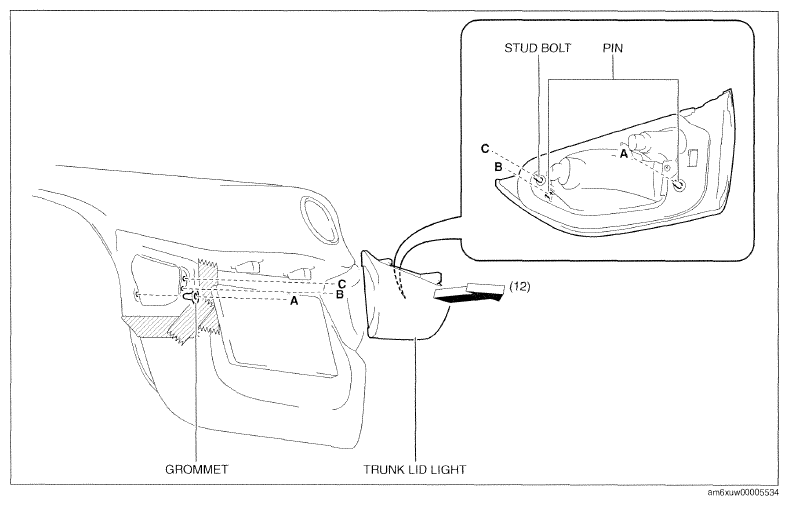

    Fig 15: Removing Trunk Lid Light
    G09788159Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • If the trunk lid light is removed from the trunk lid, the trunk lid light may fall off and be damaged. When removing the trunk lid light from the trunk lid, hold the trunk lid light on the lens side with a hand during the servicing.
  22. Remove the trunk lid light.
  23. Install in the reverse order of removal.
