Side Turn Light Inspection

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION .
Apply battery voltage to side turn light terminal A, and connect terminal B to ground.

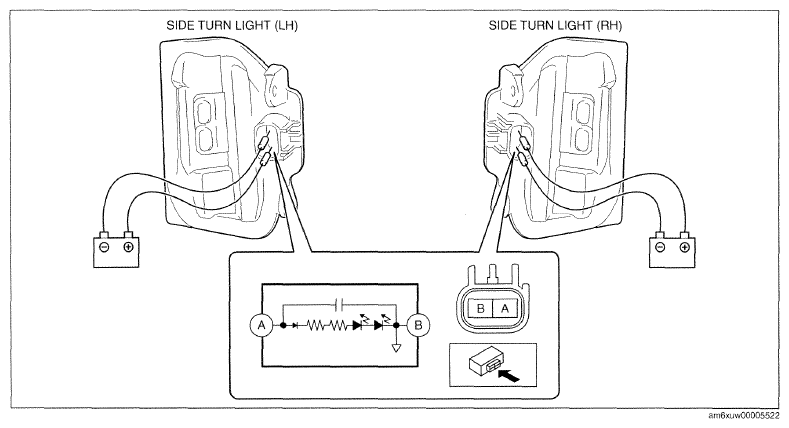

Fig 1: Applying Battery Voltage To Side Turn Light Terminal
Courtesy of MAZDA MOTORS CORP.
Verify that the LED illuminates.
- If the LED illuminates, go to the next step.
- If the LED does not illuminate, replace the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION .)
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Power outer mirror connector (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
Verify that the continuity between side turn light terminal and power outer mirror terminal is as indicated in the table.

Fig 2: Power Outer Mirror Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.

Fig 3: Power Outer Mirror Connector
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
