Courtesy Light Bulb Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
To prevent scratches or damage, affix protective tape to the position shown in the figure.
CAUTION:
- If a flathead screwdriver is inserted into the gap between the front door trim and lens, the front door trim could interfere with the flathead screwdriver and be damaged. When removing the lens from the front door trim, perform the procedure after affixing protective tape to the front door trim.

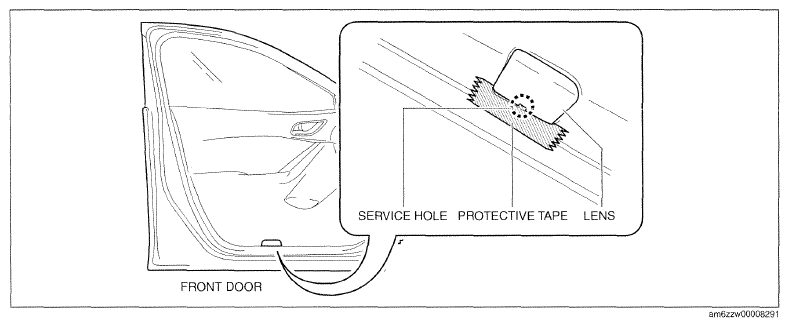

Fig 1: Identifying Protective Tape Applying Area On Front Tape
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.
Move the flathead screwdriver in the direction of the arrow (1) shown in the figure to detach the lens tabs from the front door trim.

Fig 2: Detaching Lens Tabs From Front Door Trim
Courtesy of MAZDA MOTORS CORP.
Remove the lens.
Remove the courtesy light bulb.
Install in the reverse order of removal.

Fig 3: Identifying Courtesy Light Bulb And Lens
Courtesy of MAZDA MOTORS CORP.
