SIRIUS Satellite Radio Unit Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- The audio unit communicates with the SIRIUS satellite radio unit and records the presence/non-presence of the SIRIUS satellite radio unit when the ignition is switched to ACC or ON (engine off or on) after connecting the negative battery cable.
- If the commander switch is installed with the negative battery cable connected when the audio unit records that there is no SIRIUS satellite radio unit, the SIRIUS satellite radio unit does not operate.
- For the SIRIUS satellite radio unit installation/removal, disconnect the negative battery cable, switch the ignition to ACC or ON (engine off or on) after the servicing is completed, and the audio unit records the presence/non-presence of the SIRIUS satellite radio unit.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)

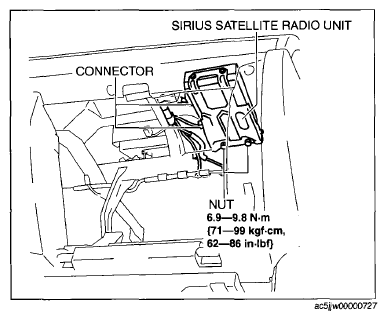

- Disconnect the connectors.
- Remove the nuts.
- Remove the SIRIUS satellite radio unit.
- Install in the reverse order of removal.
