Global Positioning System (GPS) Antenna Removal/Installation
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

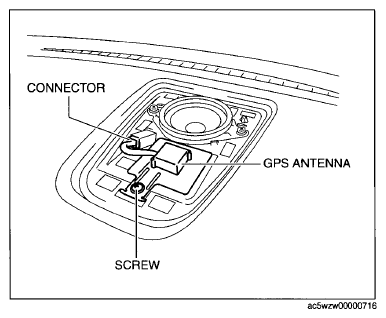

- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the center speaker grille. (see SPEAKER GRILLE REMOVAL/INSTALLATION .)
- Disconnect the connector.
- Remove the screw.
- Remove the GPS antenna.
- Install in the reverse order of removal.
