Rear Stabilizer Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear coil spring (RH). (See REAR COIL SPRING REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.
  4. Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

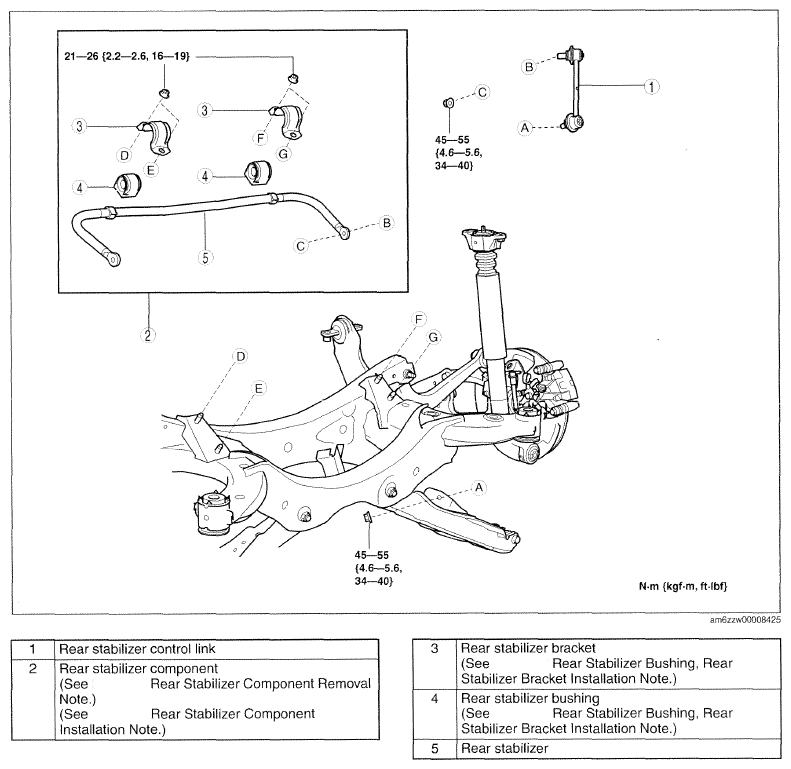

    Fig 1: Exploded View Of Rear Stabilizer With Torque Specifications
    G09785671Courtesy of MAZDA MOTORS CORP.
