Rear Shock Absorber Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.

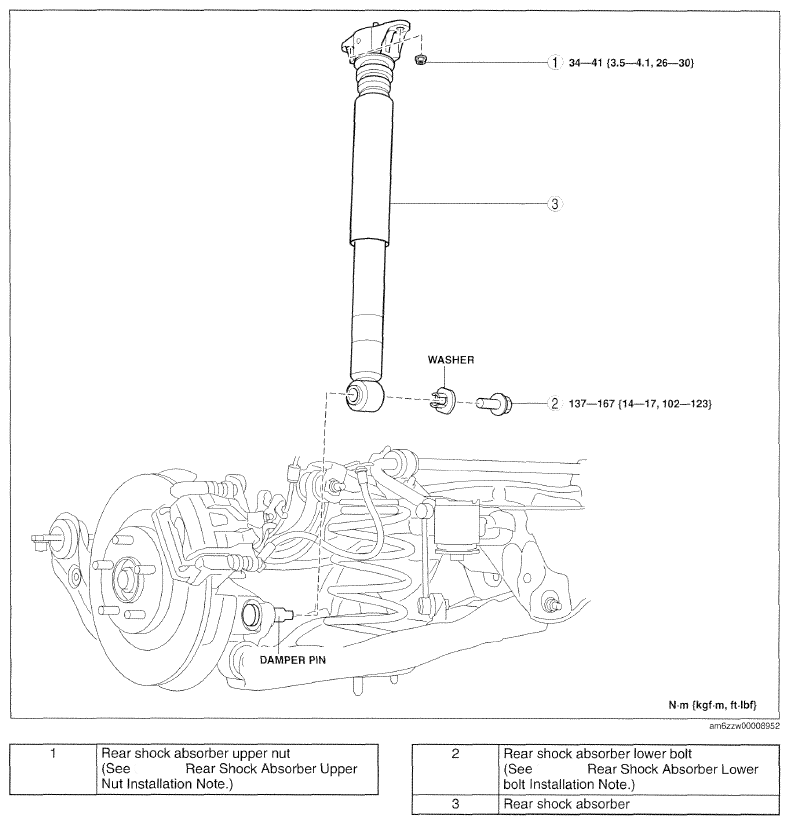

Fig 1: Exploded View Of Rear Shock Absorber With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
