Rear Lateral Link Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the rear stabilizer control link lower side nut. (See REAR STABILIZER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

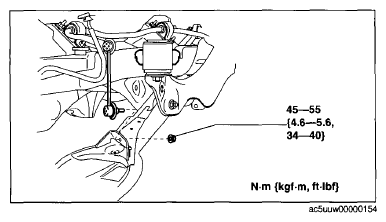

Fig 1: Rear Lateral Link And Mounting Nut With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

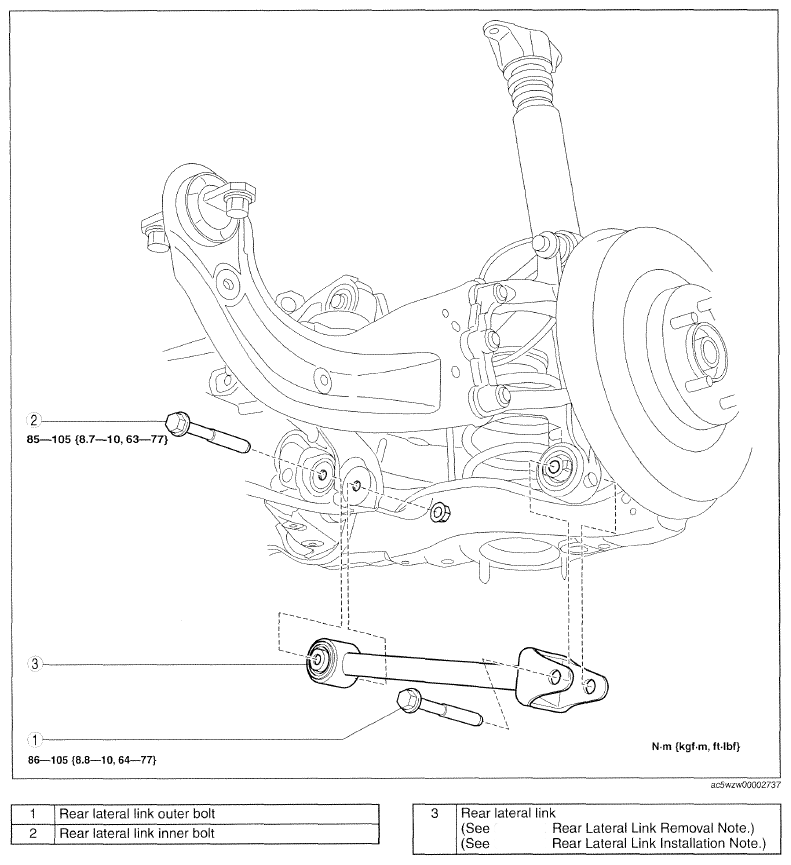

Fig 2: Exploded View Of Rear Lateral Link With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
