Rear Coil Spring Installation Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

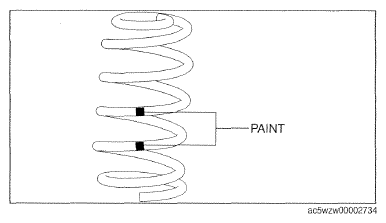

Install the rear coil spring so that the orange paint is pointed upward of the vehicle.
Align the upper end of the rear coil spring with the step of the upper spring seat rubber.
Align the lower end of the rear coil spring with the step of the lower spring seat rubber.

Fig 1: Aligning Lower End Of Rear Coil Spring
Courtesy of MAZDA MOTORS CORP.
Position the jack under the rear lower arm and jack up slowly.
Install the rear lower arm outer bolt.

Fig 2: Positioning Jack Under Rear Lower Arm
Courtesy of MAZDA MOTORS CORP.
