Rear CROSSMEMBER Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • Verify that the rear crossmember is securely supported by a jack. If the rear crossmember falls off, it can cause serious injury or death, and damage to the vehicle.
CAUTION:
  • Performing the following procedures without first removing the rear ABS wheel-speed sensor may possibly cause an open circuit in the harness if it is pulled by mistake. Before performing the following procedures, disconnect the rear ABS wheel-speed sensor (axle side) and fix it to an appropriate place where the sensor will not be pulled by mistake while servicing the vehicle.
NOTE:
  • Mark the position before removing the rear upper arm.
  • Align the rear crossmember and rear upper arm markings when installing the rear upper arm.
  • Tighten the rear upper arm inner bolt completely before installing the rear crossmember component to the vehicle.
  1. Disconnect the wiring harness clips and connector installed to the rear crossmember. (With auto leveling sensor)

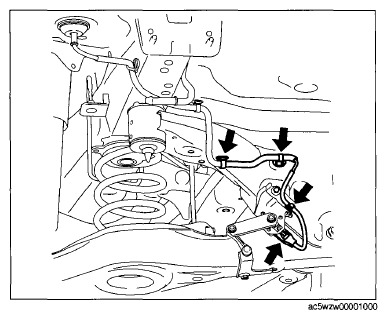

    Fig 1: Locating Wiring Harness Clips
    G09074792Courtesy of MAZDA MOTORS CORP.
  2. Remove the auto leveling sensor. (With auto leveling sensor) (See AUTO LEVELING SENSOR REMOVAL/INSTALLATION .)

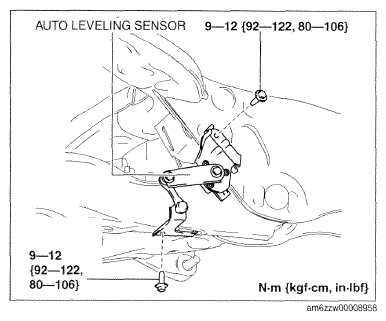

    Fig 2: Auto Leveling Sensor And Mounting Bolt With Torque Specifications
    G09785684Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the rear ABS wheel-speed sensor wiring harness installed to the hub support and set it aside. (See REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)

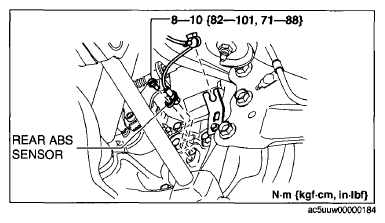

    Fig 3: Rear ABS Sensor And Mounting Bolt With Torque Specifications
    G09074794Courtesy of MAZDA MOTORS CORP.
  4. Jack up the vehicle to the unloaded condition, and support the rear trailing link component using a jack.

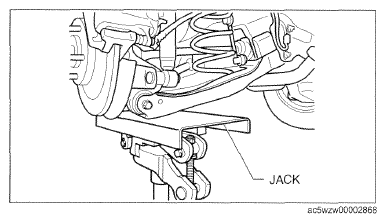

    Fig 4: Supporting Rear Trailing Link Component Using Jack
    G09785686Courtesy of MAZDA MOTORS CORP.
  5. Align the rear crossmember component and rear upper arm and mark them.
  6. Remove the TWC. (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
  7. Remove the rear lateral link. (See REAR LATERAL LINK REMOVAL/INSTALLATION .)
  8. Remove the rear coil spring. (See REAR COIL SPRING REMOVAL/INSTALLATION .)
  9. Remove the rear lower arm. (See REAR LOWER ARM REMOVAL/INSTALLATION .)
  10. Remove in the order indicated in the table.
  11. Install in the reverse order of removal.
  12. Inspect the wheel alignment and adjust it if necessary. (See REAR WHEEL ALIGNMENT .)

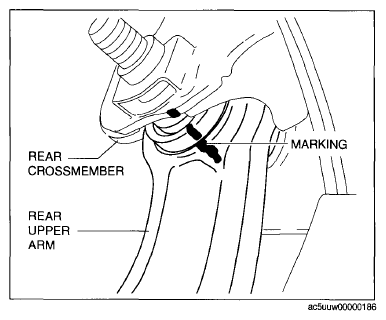

    Fig 5: Aligning Rear Crossmember Component And Rear Upper Arm
    G09074796Courtesy of MAZDA MOTORS CORP.

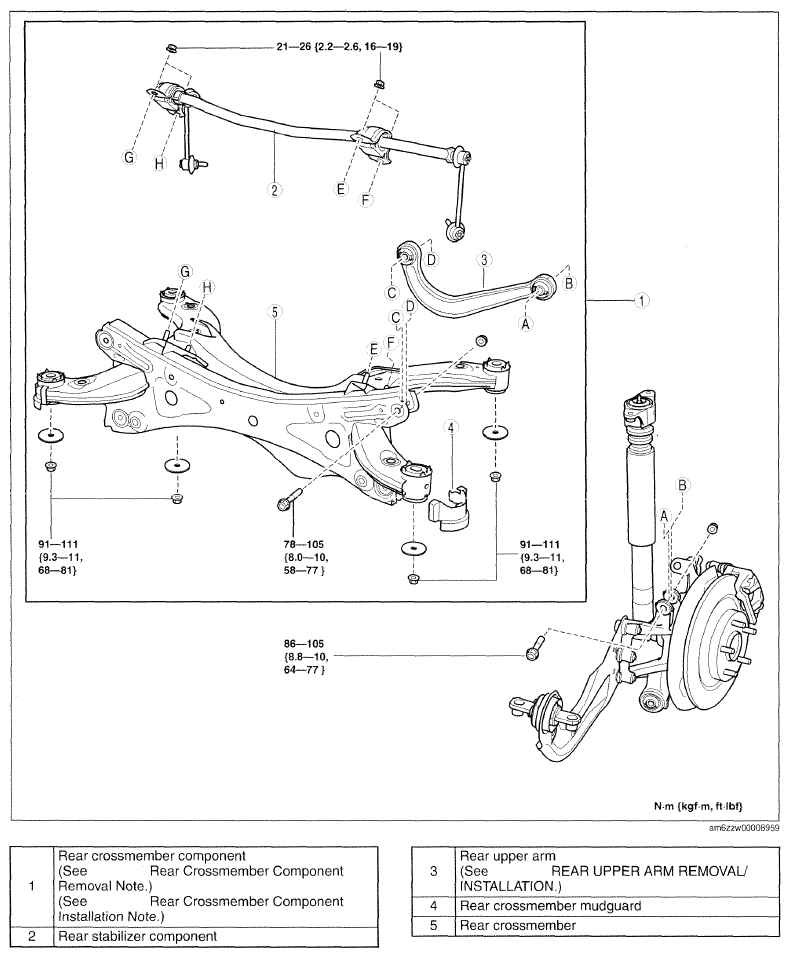

    Fig 6: Exploded View Of Rear Suspension With Torque Specifications
    G09785688Courtesy of MAZDA MOTORS CORP.
