No. 4 engine mount bracket removal note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • A slot has been adopted for the No. 4 engine mount bracket installation hole. If the No. 4 engine mount bracket is deviated from the original position when installing the No. 4 engine mount. engine noise or vibration could increase. When removing the No. 4 engine mount, place alignment marks on the No. 4 engine mount bracket so that they can be assembled to the same positions as before removal.
  1. Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.
    NOTE:
    • Paint so that the outline of the nut is framed on the bracket side.
  2. Remove the No. 4 engine mount bracket.

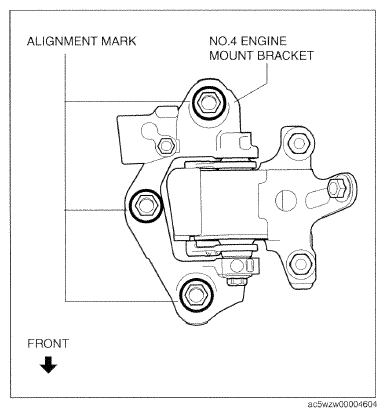

    Fig 1: Identifying Engine Mount Bracket And Alignment Marks
    G09786137Courtesy of MAZDA MOTORS CORP.
