Automatic Transaxle Fluid (ATF) Adjustment

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Only adjust the ATF level when the ATF temperature is 45-55 °C {113-131 °F}. If the ATF level is incorrect, it could damage the transaxle.
Do not add ATF over the specification. Otherwise, the transaxle performance could be reduced and ATF could leak.

Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
Remove the dipstick securing bolt.
Remove the dipstick.

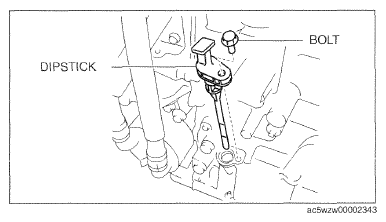

Fig 1: Identifying Dipstick And Bolts
Courtesy of MAZDA MOTORS CORP.
Adjust the ATF level.
1. Connect the M-MDS to the DLC-2 and display the PID TFT.
2. Warm up the engine until the ATF temperature is 50 °C {122 °F}.
3. Remove the dipstick and wipe the ATF off using a rag while leaving the engine idling.
4. Insert the dipstick and pull it out again.
5. Verify that ATF is adhering to the central marker area on the dipstick.
  - If ATF is not adhering to the central marker area on the dipstick, adjust the ATF level to the central marker area.
  NOTE:
  - The ATF color is blue.
  - Only use ATF FZ for the FW6A-EL.
  ATF type

  ATF FZ
Insert the dipstick and install the securing bolt.
Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
Install the front undercover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)

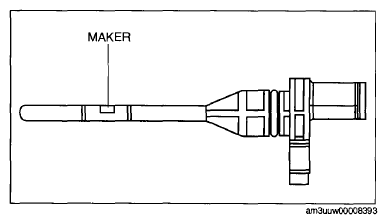

Fig 2: Identifying ATF Maker
Courtesy of MAZDA MOTORS CORP.
