Trunk End Trim Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove fasteners A.

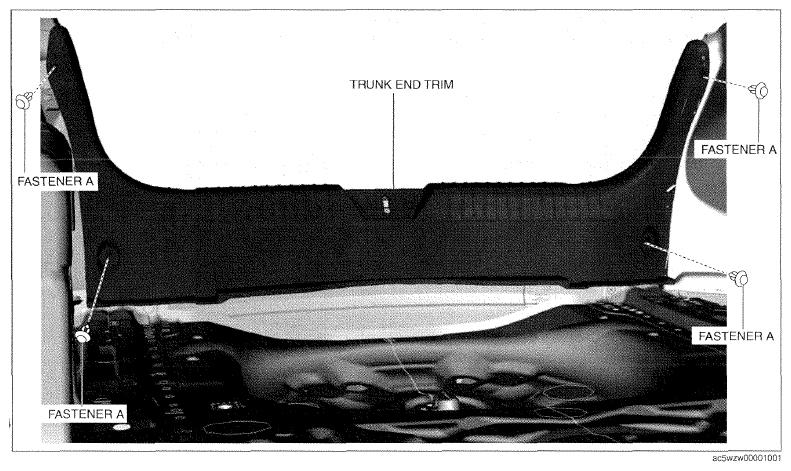

    Fig 1: Identifying Trunk End Trim And Mounting Screw
    G09788040Courtesy of MAZDA MOTORS CORP.
  4. Pull the trunk end trim in the direction of the arrow in the order of (1), (2) shown in the figure while detaching clips A, pins B, pins C, clips D, and guide E.

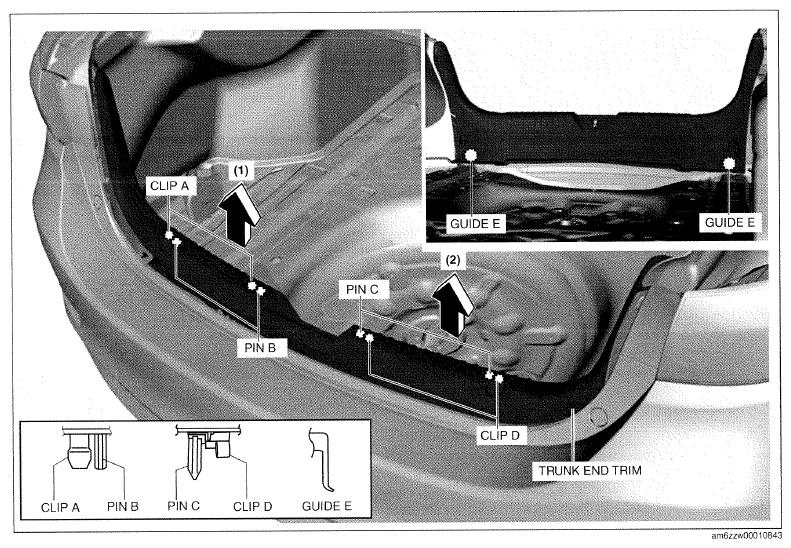

    Fig 2: Pulling Trunk End Trim
    G09788041Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
