Cruise Control Switch Inspection (MRCC System)
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Switch the ignition off (LOCK).
- Disconnect the negative battery cable and wait for 1 min or more. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .) (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
- Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

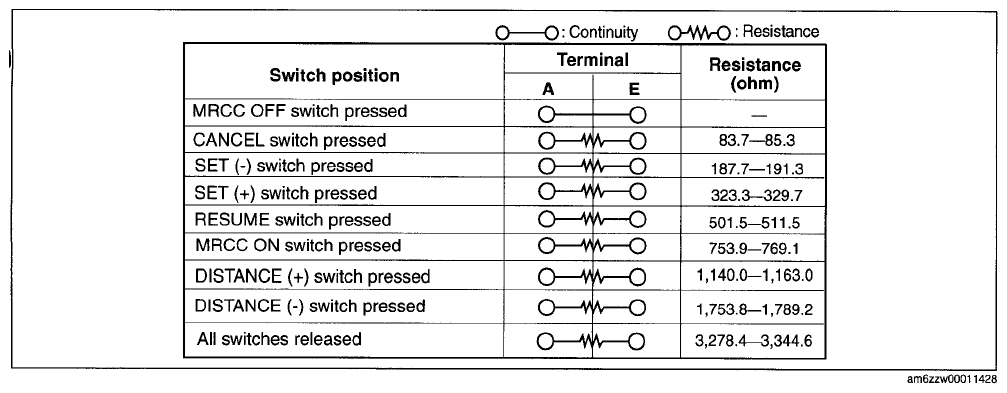

- Verify that the resistance and continuity between the steering switch terminals is as indicated in the table.
- If not as indicated in the table, replace the cruise control switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)

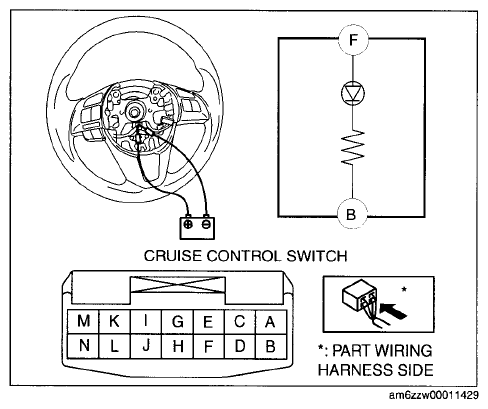

- Apply battery positive voltage to cruise control switch terminal F, and connect terminal B to ground.
- Verify that the LED illuminates.
- If the LED does not illuminate, replace the cruise control switch. (See STEERING SWITCH REMOVAL/INSTALLATION .)
