Clutch Unit Removal/Installation: Notes

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the manual transaxle. (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.
  5. Add the specified amount of specified manual transaxle oil. (See MANUAL TRANSAXLE OIL REPLACEMENT .)

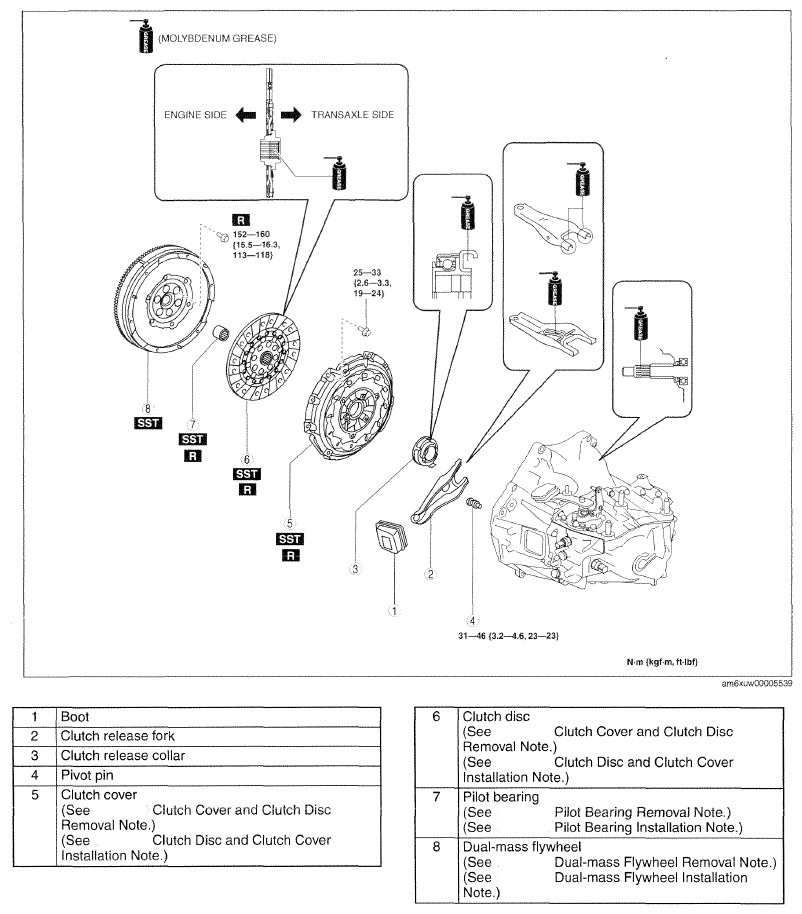

    Fig 1: Clutch Unit Components With Torque Specification
    G09785943Courtesy of MAZDA MOTORS CORP.
