DTC B1D06 11: Turn Light (LH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
DTC B1D06:11 (FRONT BODY CONTROL MODULE) DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Turn light (LH) circuit malfunction |
| Detection condition |
- Front body control module (FBCM) detects a short to ground in the turn light (LH) circuit with the ignition switched ON (engine off or on).
|
| Fail-safe function |
Not applicable |
| Possible cause |
- Front body control module (FBCM) connector or terminal malfunction
- Parking/front side marker/front turn light bulb (LH) malfunction (Without discharge headlight system)
- Front side marker/front turn light bulb (LH) malfunction (With discharge headlight system)
- Front combination light (LH) connector or terminal malfunction

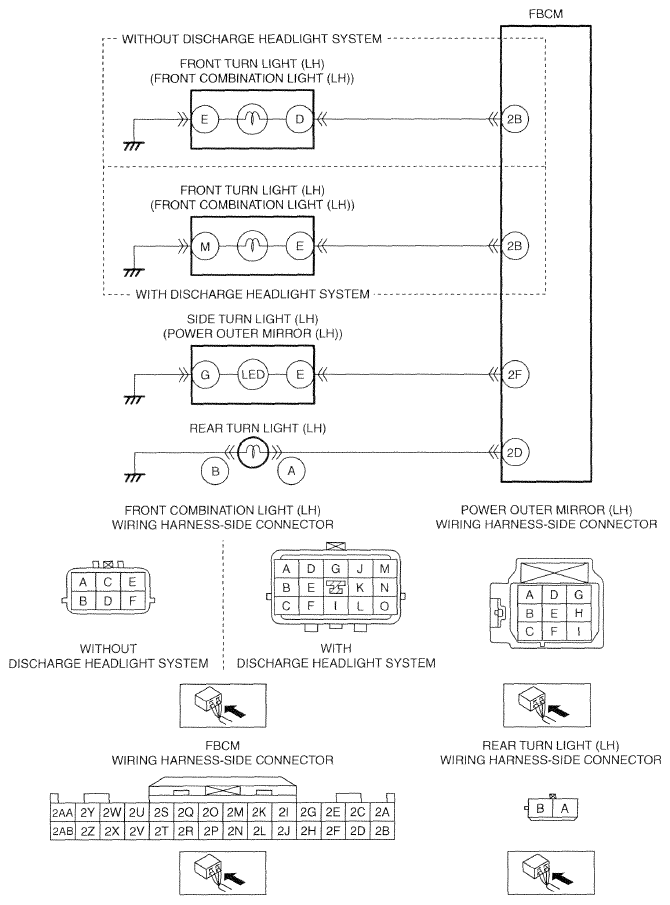

- Short to ground in wiring harness between the following terminals:
- Front combination light (LH) terminal D-Front body control module (FBCM) terminal 2B (Without discharge headlight system)
- Front combination light (LH) terminal E-Front body control module (FBCM) terminal 2B (With discharge headlight system)
- Power outer mirror (LH) connector or terminal malfunction
- Side turn light (LH) malfunction
- Short to ground in wiring harness between power outer mirror (LH) terminal E and front body control module (FBCM) terminal 2F
- Rear turn light bulb (LH) malfunction
- Rear turn light (LH) connector or terminal malfunction
- Short to ground in wiring harness between rear turn light (LH) terminal A and front body control module (FBCM) terminal 2D
- Front body control module (FBCM) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
