Vacuum Hose Removal/Installation

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5]
Pinch open the clamp using pliers and disconnect the vacuum hose.

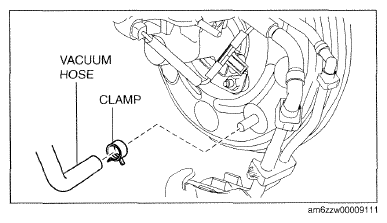

Fig 1: Removing Vacuum Hose
Courtesy of MAZDA MOTORS CORP.
Detach the vacuum hose from the clip.

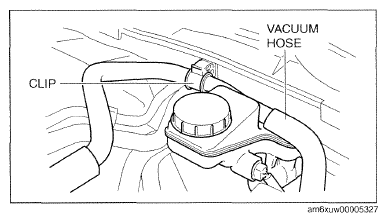

Fig 2: Identifying Vacuum Hose Clip
Courtesy of MAZDA MOTORS CORP.
Pinch open the clamp using pliers and disconnect the vacuum hose.
Remove the vacuum hose.
Install in the reverse order of removal.

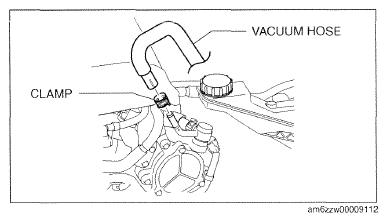

Fig 3: Identifying Vacuum Hose And Clamp
Courtesy of MAZDA MOTORS CORP.
