Throttle body side

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

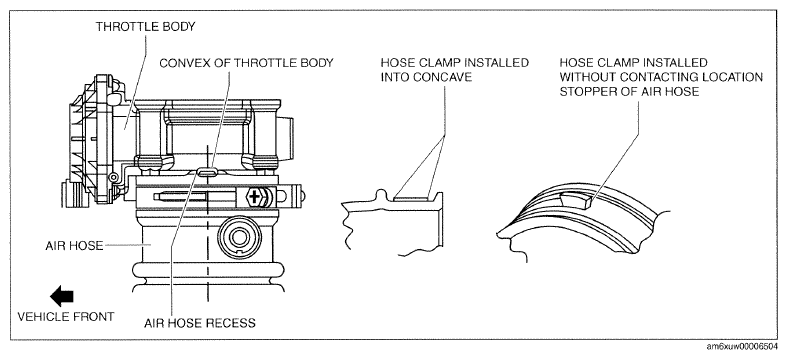

Fig 1: Air Hose Installation Diagram (Throttle Body Side)
G09786773Courtesy of MAZDA MOTORS CORP.
