No. 3 Engine Mount Removal Note

WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the clips shown in the figure and set the ground cable aside.
  2. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
    CAUTION:
    • To prevent deformation of the oil pan, support the engine using the following methods.
      • When using an engine lifter, insert rubber of appropriate size (approx. 20 mm {0.79 in} thickness) between the engine lifter and the oil pan to support the oil pan.
      • When using a garage jack, place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover the oil pan to support the oil pan.
    Fig 1: Identifying Ground Cable And Mounting Clip
    G09074101Courtesy of MAZDA MOTORS CORP.
  3. Before removing the No. 3 engine mount, support the engine (oil pan) using a commercially available engine lifter or garage jack.
    CAUTION:
    • Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.
    Fig 2: Identifying Oil Pan
    G09785029Courtesy of MAZDA MOTORS CORP.
  4. Place alignment marks on the locations shown in the figure so that they can be assembled to the same positions as before removal.
    NOTE:
    • Paint so that the No. 3 engine mount is framed on the body side and the outline of the nut is framed on the No. 3 engine mount side.
  5. Remove the No. 3 engine mount.

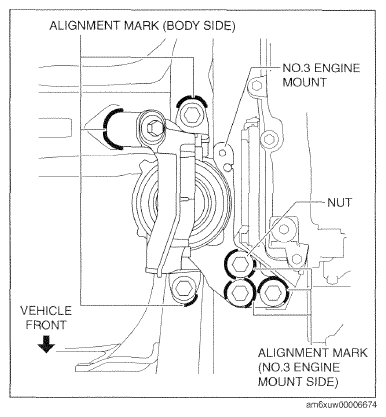

    Fig 3: Identifying Alignment Marks No. 3 Engine Mount Side
    G09785030Courtesy of MAZDA MOTORS CORP.
