Engine Front Cover Removal Note

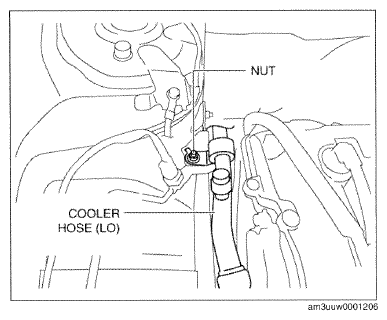

Remove the nut shown in the figure and set the cooler hose (LO) aside.

Fig 1: Identifying Cooler Hose And Nut
Courtesy of MAZDA MOTORS CORP.

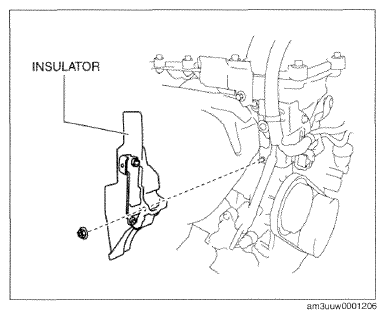

Remove the insulator shown in the figure.

Fig 2: Removing Insulator
Courtesy of MAZDA MOTORS CORP.

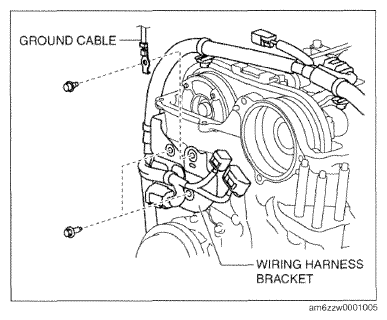

Set the ground cable and wiring harness bracket shown in the figure aside.
Remove the engine front cover installation bolts.

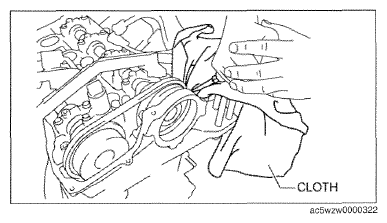

Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
CAUTION:
- Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
- Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.
Fig 3: Removing Ground Cable Bolts
Courtesy of MAZDA MOTORS CORP.

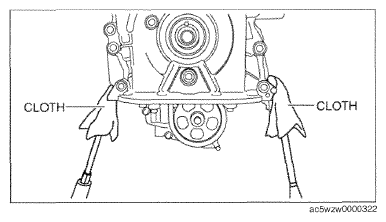

Fig 4: Peeling Sealant From Engine Using Cloth
Courtesy of MAZDA MOTORS CORP.

Fig 5: Removing Engine Front Cover
Courtesy of MAZDA MOTORS CORP.
