Plug Hole Plate Removal/Installation: Notes

CAUTION:
  • If the rubber on only one side of the plug hole plate front is lifted up, it could damage the adapter at the location shown in the figure. When removing the plug hole plate, lift up the rubbers at the same time.

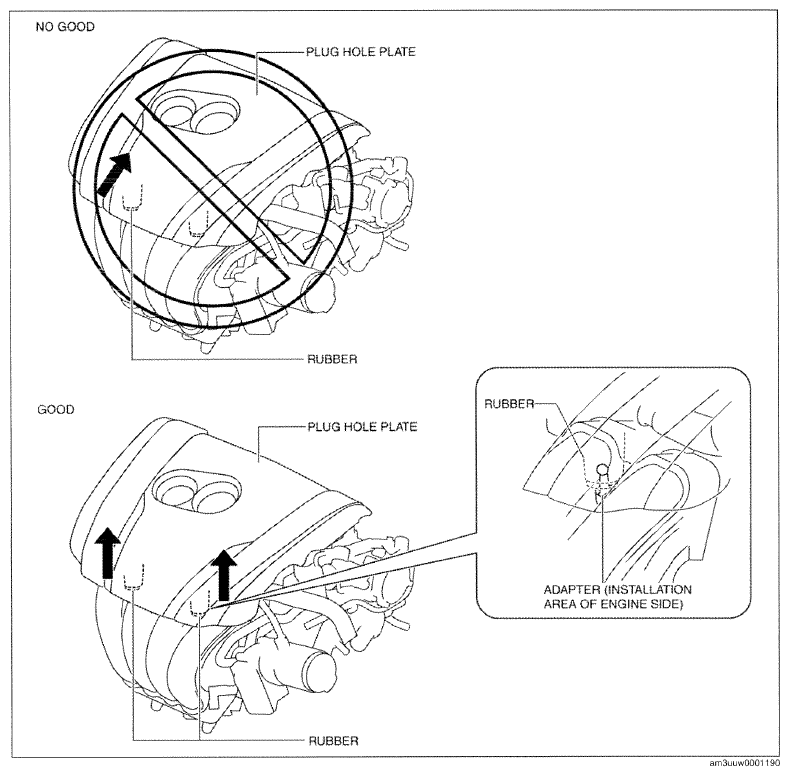

Fig 1: Removing Plug Hole Plate (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
G09794799Courtesy of MAZDA MOTORS CORP.
