No. 1 Engine Mount: Notes

  1. Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

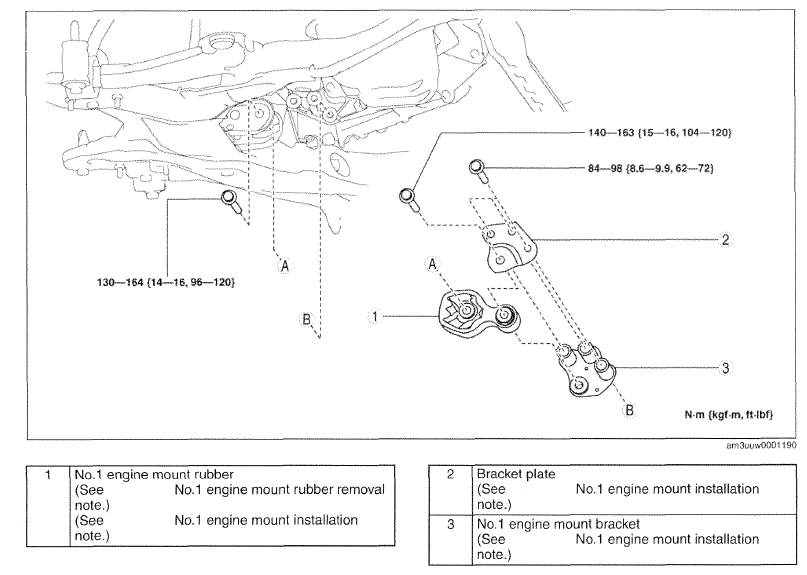

    Fig 1: Engine Mount Replacement Components With Torque Specifications
    G09795006Courtesy of MAZDA MOTORS CORP.
