Rear Housing Installation Note

NOTE:
  • After applying silicone sealant, install the rear housing within 10 min. and then tighten all bolts within 5 min.
  1. Apply silicone sealant to the areas shown in the figure.

    Thickness

    3.0-7.0 mm {0.12-0.27 in}

  2. Install the rear housing.

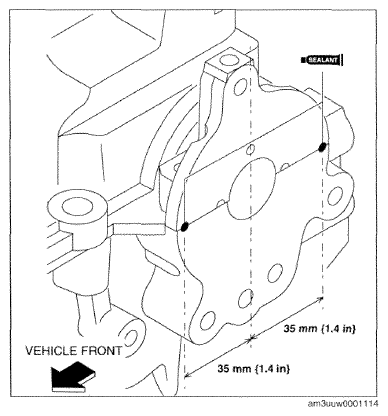

    Fig 1: Identifying Rear Housing Silicone Sealant Applying Area
    G09782705Courtesy of MAZDA MOTORS CORP.
