Purge Solenoid Valve Removal/Installation: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the air cleaner and air hose as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
  4. Disconnect the high pressure fuel pump connector.
  5. Disconnect the harness clip as shown in the figure.

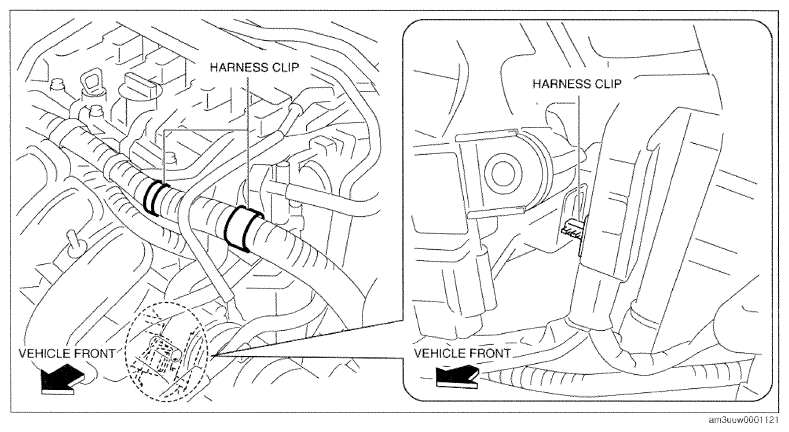

    Fig 1: Identifying Purge Solenoid Valve Harness Clip
    G09782778Courtesy of MAZDA MOTORS CORP.
  6. Remove in the order indicated in the table.

    SKYACTIV-G 2.0

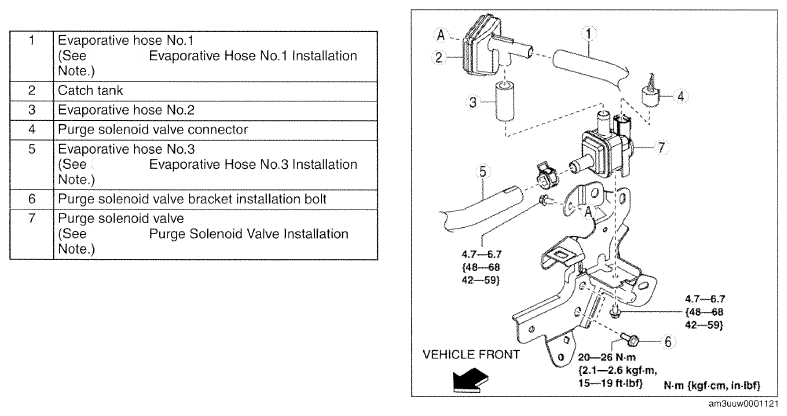

    Fig 2: Catch Tank Replacement Components With Torque Specifications
    G09782779Courtesy of MAZDA MOTORS CORP.

    SKYACTIV-G 2.5

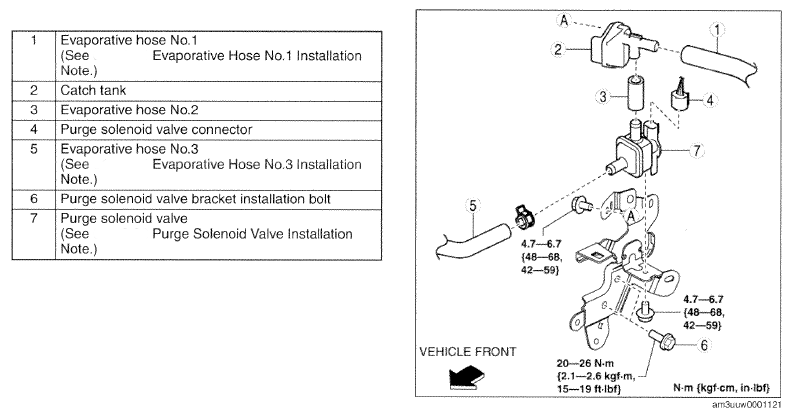

    Fig 3: Catch Tank Replacement Components With Torque Specifications
    G09782780Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
