Retainer Installation Note

CAUTION:

Be sure to replace the old retainer with a new one to prevent the escape of blow-by gas. Reinstalling the old retainer will reduce airtightness.

Make sure that the retainer alignment mark is directed as shown in the left diagram before installing the retainer to the oil separator.
SKYACTIV-G 2.0

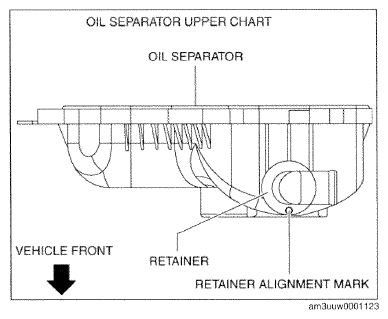

Fig 1: Identifying Retainer Alignment Mark (SKYACTIV-G 2.0)
Courtesy of MAZDA MOTORS CORP.

SKYACTIV-G 2.5

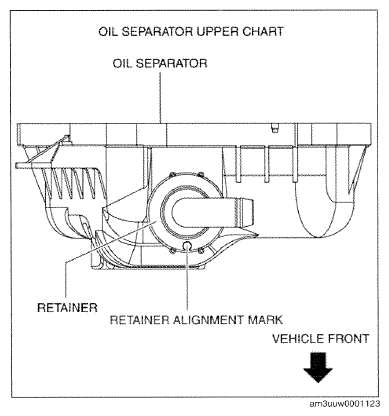

Fig 2: Identifying Retainer Alignment Mark (SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
