Except U.S.A. And CANADA

  1. Remove in the order indicated in the table.

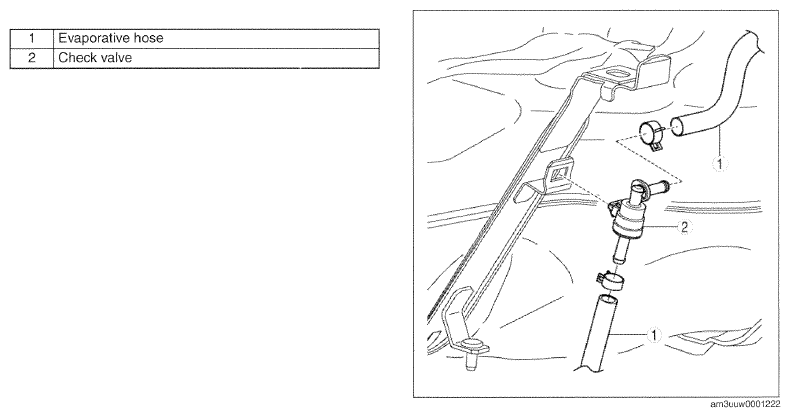

    Fig 1: Identifying Evaporative Hose And Check Valve (Except U.S.A. And Canada)
    G09782797Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
