U.S.A. And CANADA

  1. Remove the check valve. (See FUEL TANK REMOVAL/INSTALLATION .)
  2. Verify that there is airflow when positive pressure is applied to port A.
  3. Verify that there is airflow when negative pressure is applied to port A.
    • If there is no airflow, replace the breather pipe. (See FUEL TANK REMOVAL/INSTALLATION .)

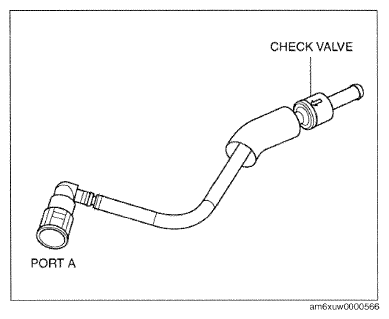

      Fig 1: Identifying Check Valve And Port
      G09782798Courtesy of MAZDA MOTORS CORP.
