Using instrument cluster (without center display)

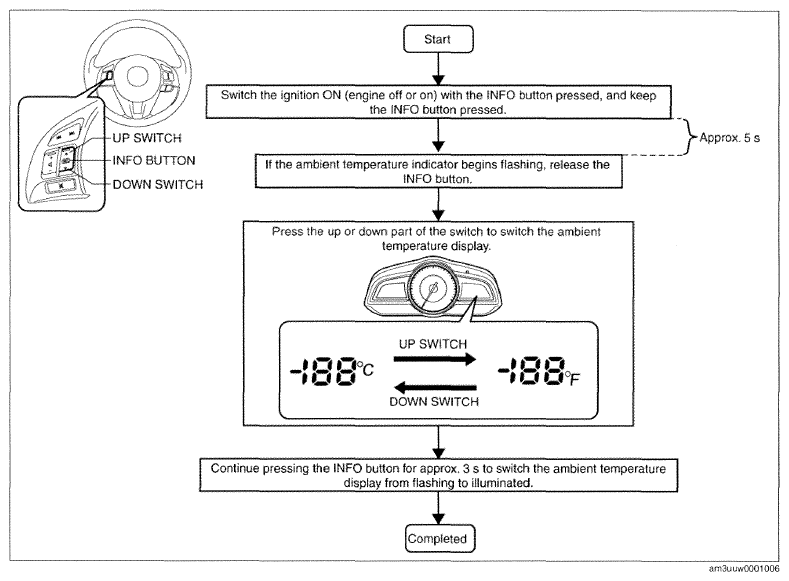

Fig 1: Instrument Cluster - Without Center Display Flow Chart

G09784411

Courtesy of MAZDA MOTORS CORP.
