Wheel House Height Measurement Procedure

  1. Adjust the SST (plum bob) so that it crosses the center of the wheel and identify the center position of the wheel house.
  2. Measure the height from the uppermost part of the wheel house to the floor.

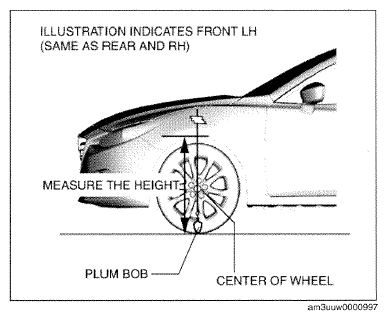

    Fig 1: Checking Wheel House Height
    G09784466Courtesy of MAZDA MOTORS CORP.
