Automatic Transaxle Control System

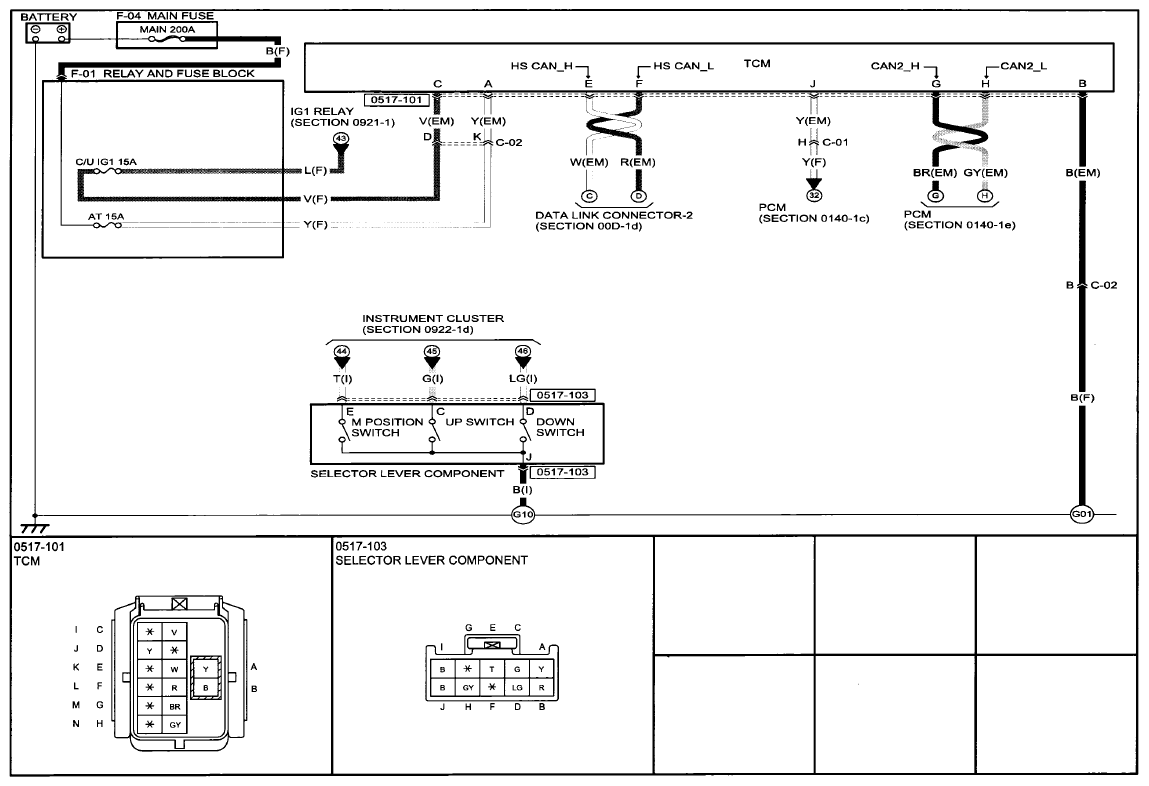

Fig 1: Automatic Transaxle Control System Communication Diagram (0517-1A)
Courtesy of MAZDA MOTORS CORP.

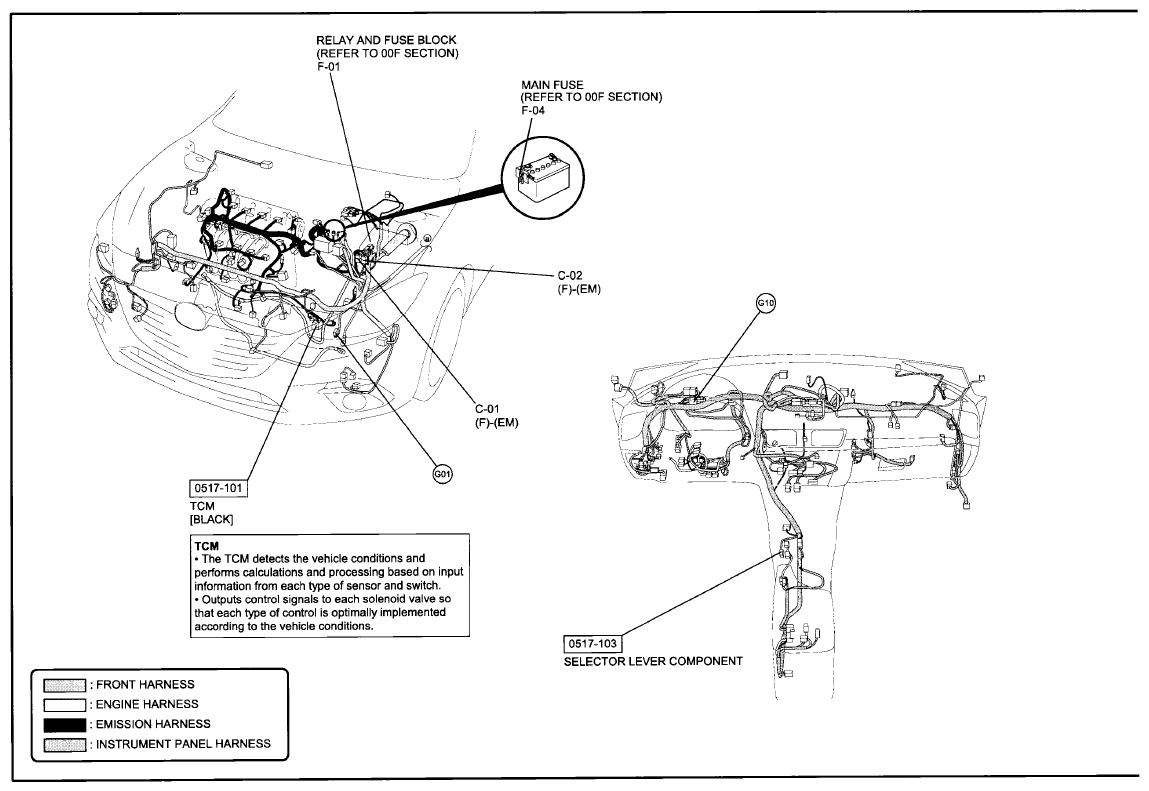

Fig 2: Automatic Transaxle Control System Connector Wiring Harness (0517-1A)
Courtesy of MAZDA MOTORS CORP.

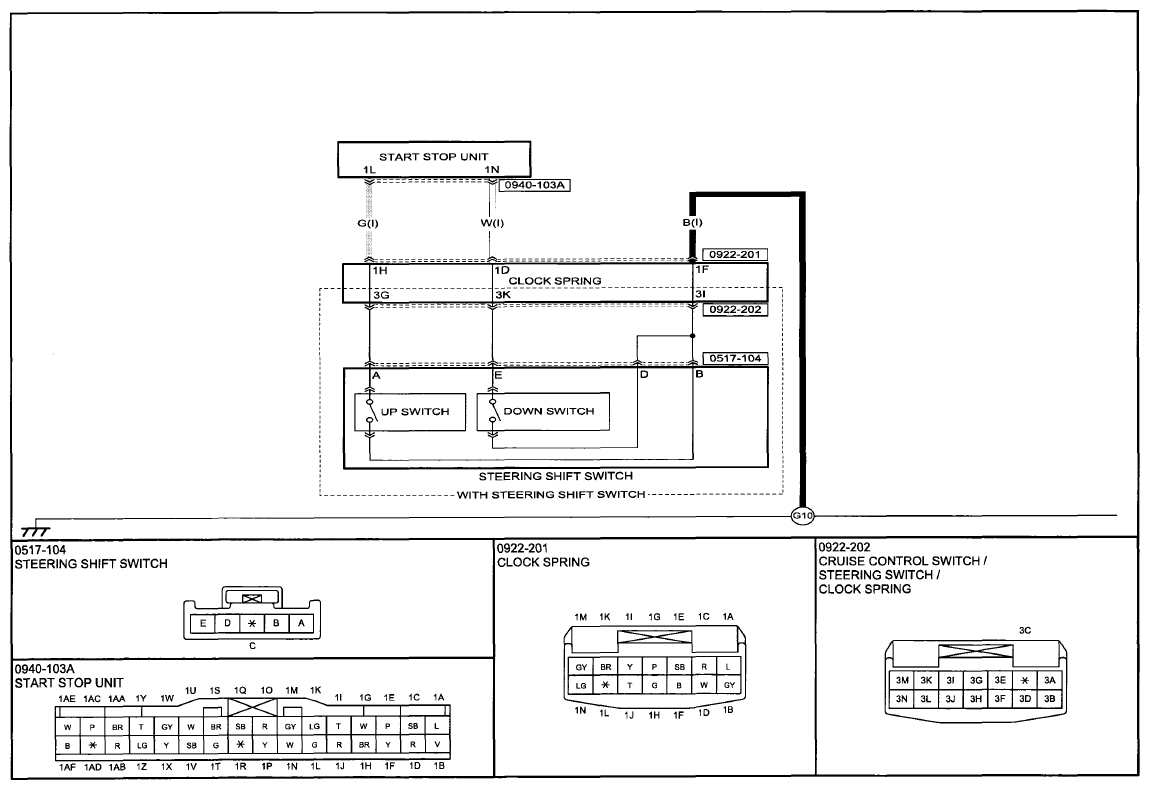

Fig 3: Automatic Transaxle Control System Communication Diagram (0517-1B)
Courtesy of MAZDA MOTORS CORP.

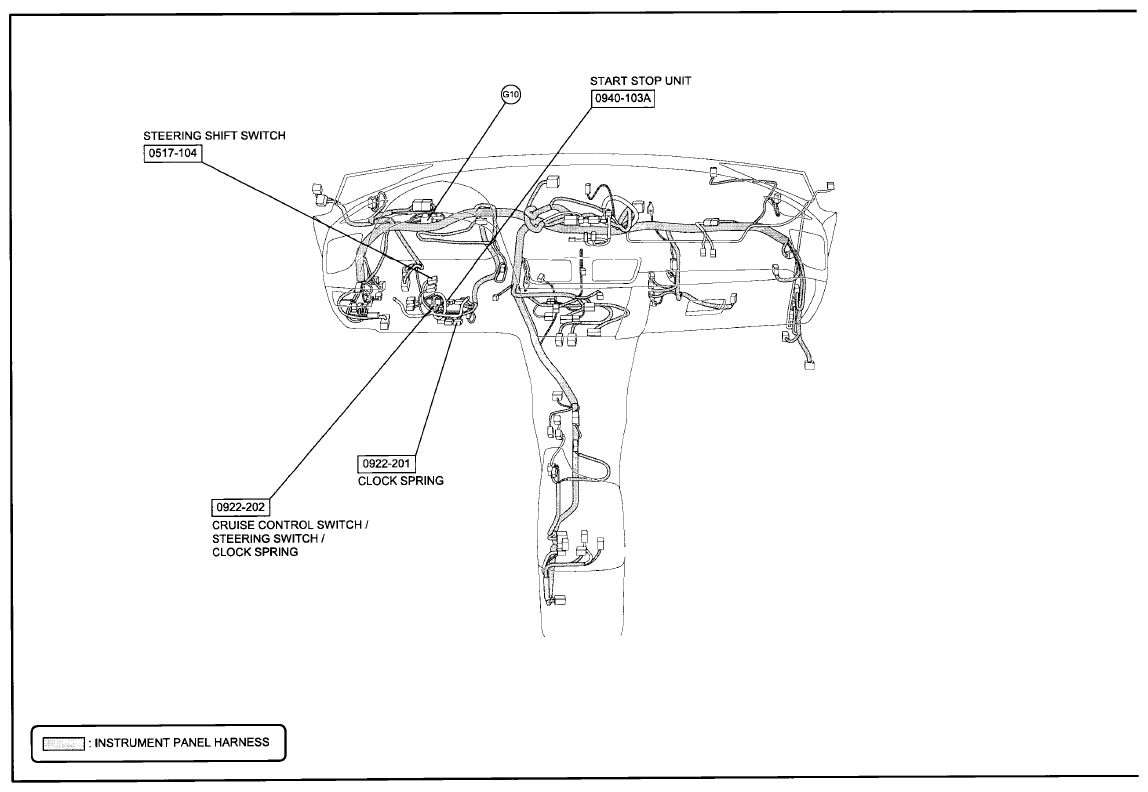

Fig 4: Automatic Transaxle Control System Connector Wiring Harness (0517-1B)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
