FBCM And Climate Control Unit Connector End View

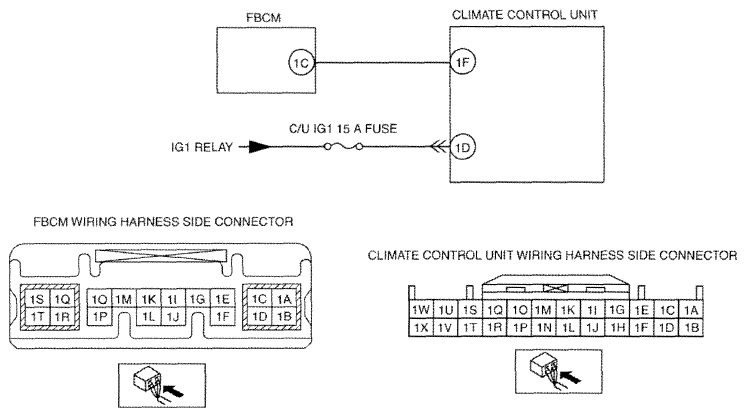

Fig 1: FBCM And Climate Control Unit Connector End View

G09771314

Courtesy of MAZDA MOTORS CORP.
