CPP Switch Connector End View

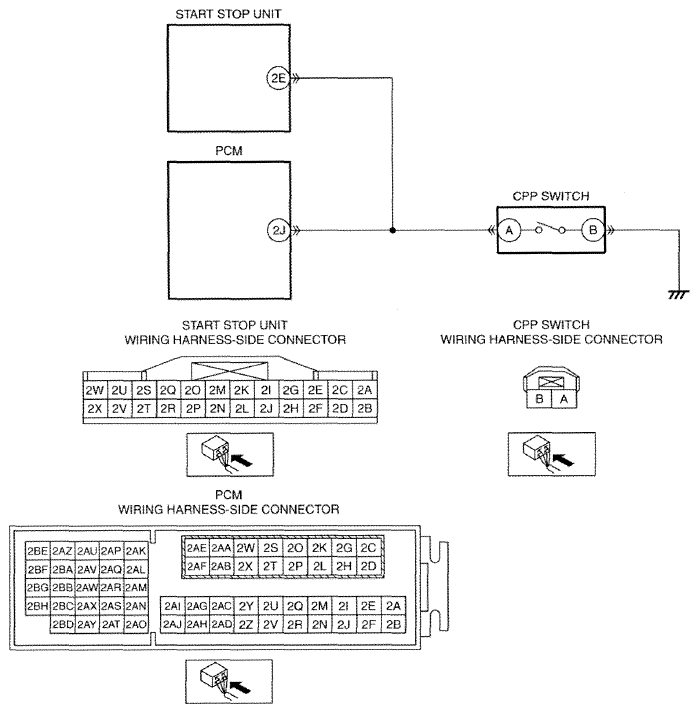

Fig 1: CPP Switch Connector End View

G09771878

Courtesy of MAZDA MOTORS CORP.

Fig 1: CPP Switch Connector End View

G09794716

Courtesy of MAZDA MOTORS CORP.
