Rear Parking Brake Cable Removal/Installation: Notes

  1. Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
  2. Loosen the adjusting nut.
  3. Remove the rear parking brake cable from the front parking brake cable. (See FRONT PARKING BRAKE CABLE REMOVAL/INSTALLATION .)
  4. Remove the floor under cover No. 1. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  5. Remove the insulator (middle) installation nuts and the fasteners. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  6. Set the insulator out of the way.
  7. Remove in the order indicated in the table.
  8. Install in the reverse order of removal.
  9. After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION .)

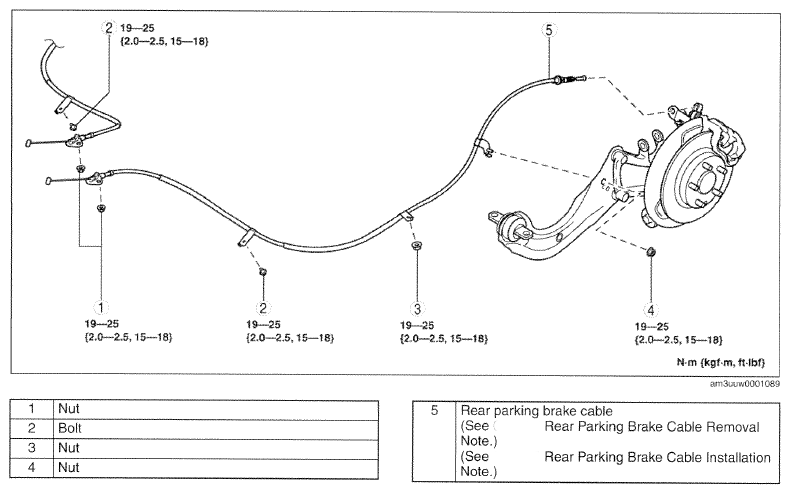

    Fig 1: Rear Parking Brake Cable Nut And Bolt With Torque Specification
    G09783058Courtesy of MAZDA MOTORS CORP.
