Parking Brake Switch Inspection

  1. Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
  2. Disconnect the parking brake switch connector.
  3. Verify that the continuity is as indicated in the table.
    • If not as indicated in the table, replace the parking brake switch.

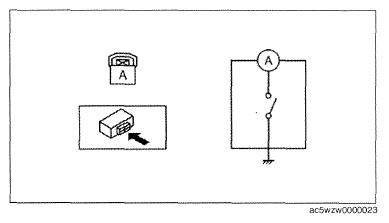

      Fig 1: Identifying Parking Brake Switch Connector Terminal
      G09783060Courtesy of MAZDA MOTORS CORP.

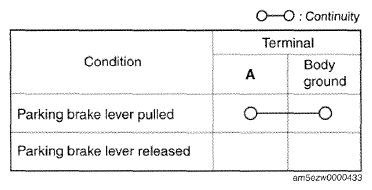

      Fig 2: Parking Brake Switch Continuity Reference Chart
      G09783061Courtesy of MAZDA MOTORS CORP.
