Rear Scuff Plate Removal/Installation

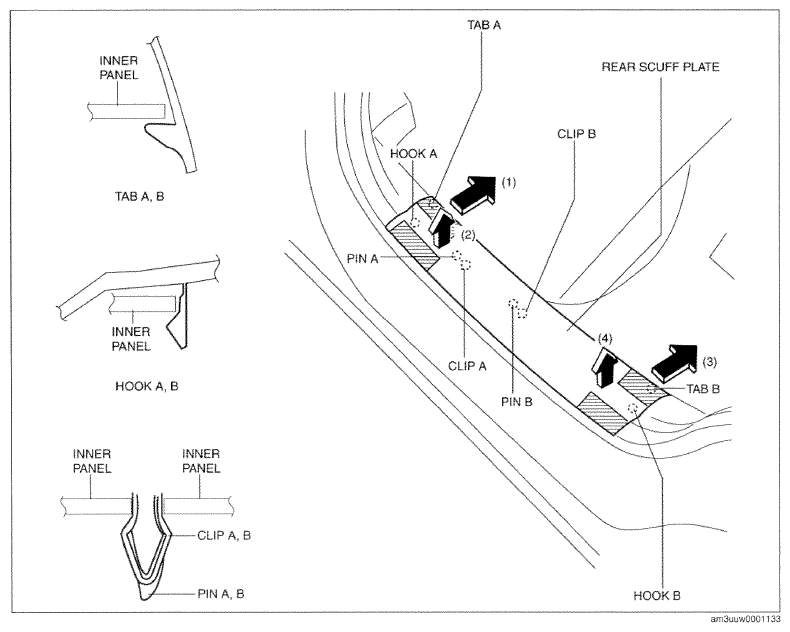

- Grasp the shaded area shown in the figure, detach tab A while pulling the rear scuff plate in the direction of the arrow (1) shown in the figure, then detach hook A, clip A, pin A while pulling in the direction of the arrow (2).
Courtesy of MAZDA MOTORS CORP.
- Grasp the shaded area shown in the figure, detach tab B while pulling the rear scuff plate in the direction of the arrow (3) shown in the figure, then detach hook B, clip B, pin B while pulling in the direction of the arrow (4).
- Install in the reverse order of removal.
