Symptom Troubleshooting - Security And Locks
>>
Quick Diagnosis Chart
Quick Diagnosis Chart

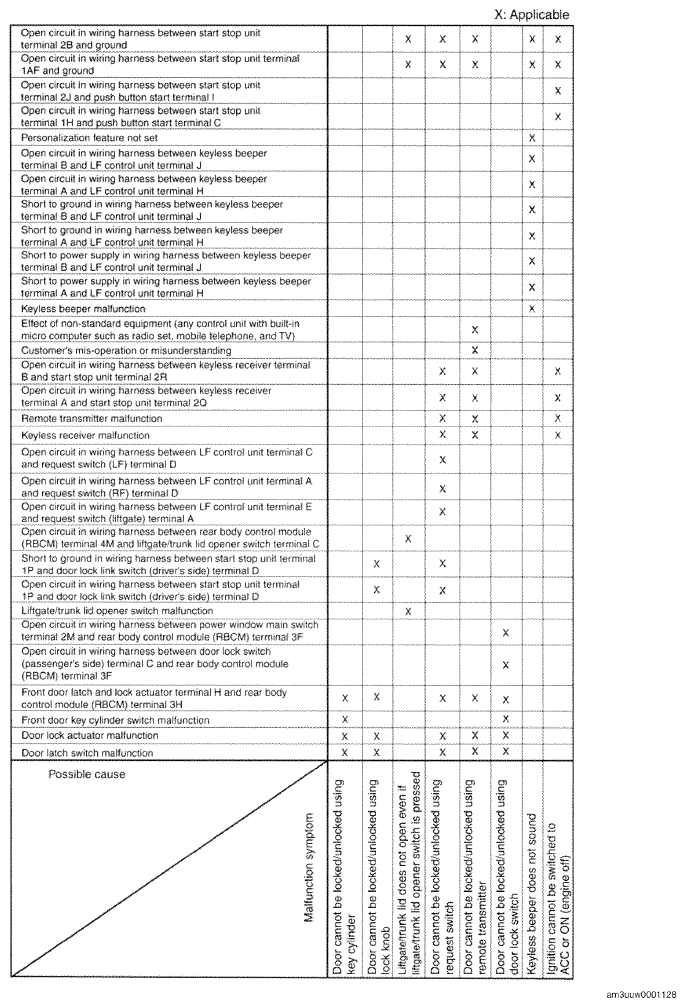

Fig 1: Quick Diagnosis Chart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
