Wiper And Washer Switch Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Rotate the steering wheel until the service hole in the position shown in the figure is visible.

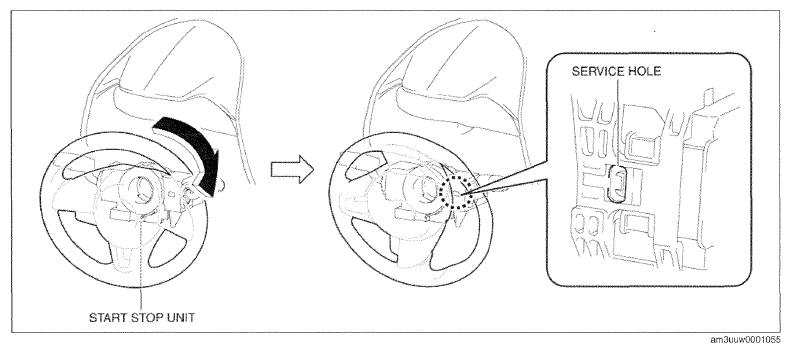

    Fig 1: Rotating Steering Wheel Until Service Hole
    G09784127Courtesy of MAZDA MOTORS CORP.
  4. While pressing the wiper and washer switch tab in the direction of arrow (1) shown in the figure, pull out the wiper and washer switch in the direction of arrow (2) shown in the figure, and detach the wiper and washer switch tab and the start stop unit.
  5. Remove the wiper and washer switch.
  6. Install in the reverse order of removal.

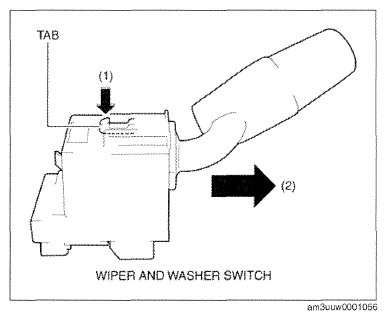

    Fig 2: Pressing Wiper And Washer Switch Tab
    G09784128Courtesy of MAZDA MOTORS CORP.
