MS-CAN Signal Waveform

MS-CAN SIGNAL WAVEFORM REFERENCE

CAN circuit condition Signal waveform (reference)

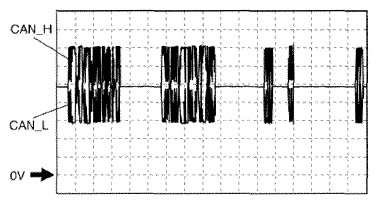

Normal
G09784498
  • CAN_H
    • Connection terminal: DLC-2: terminal L (+) <=> Body ground (-)
    • Oscilloscope setting: 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
  • CAN_L
    • Connection terminal: DLC-2: terminal K (+) <=> Body ground (-
    • Oscilloscope setting: 0.5 V/DIV (Y), 1 ms/DIV (X), DC range
