Mazda
>>
2015
>>
3 SV, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring System
>>
System Wiring Schematics/Diagrams
>>
Brake System
>>
Dynamic Stability Control System
Dynamic Stability Control System

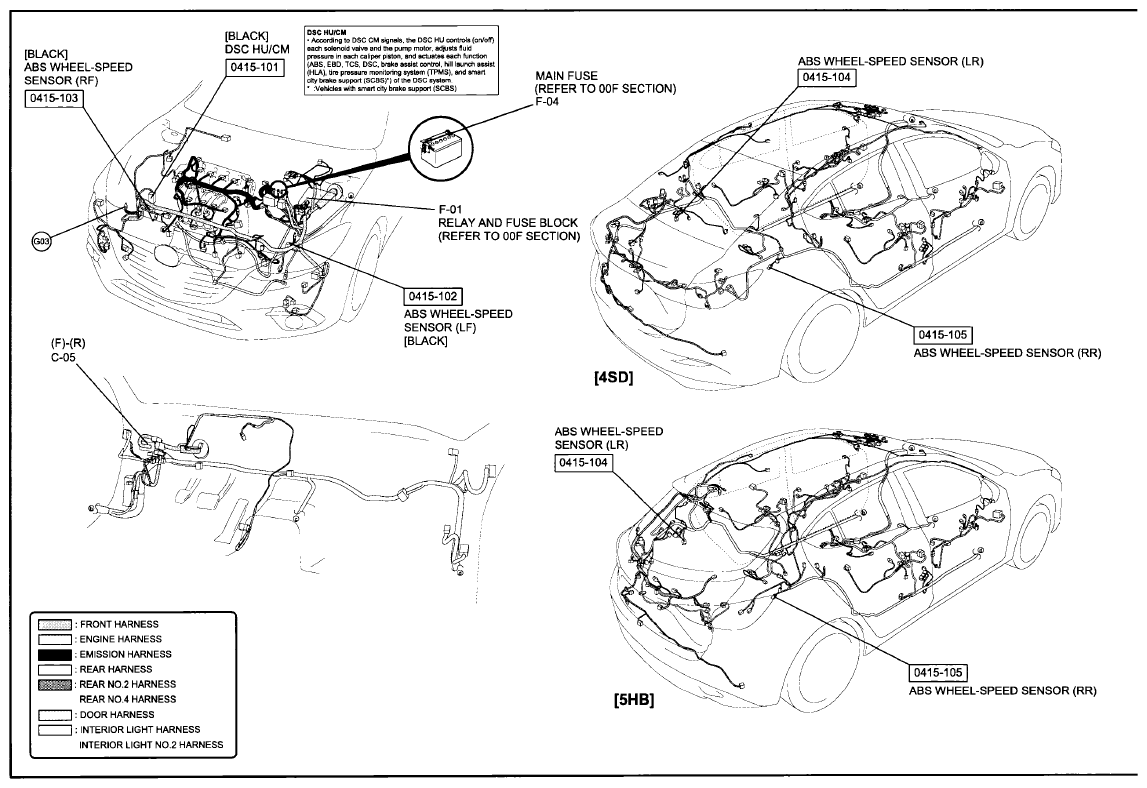

Fig 1: Dynamic Stability Control System Communication Diagram (0415-1A)
Courtesy of MAZDA MOTORS CORP.

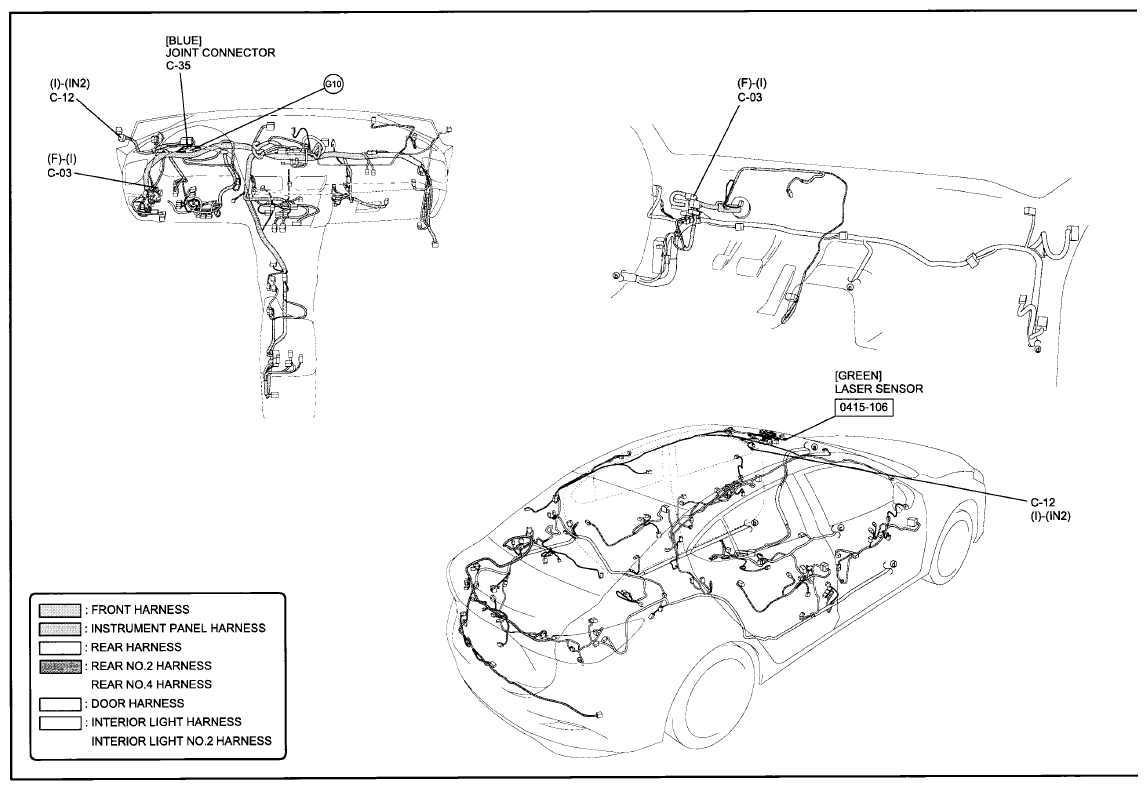

Fig 2: Dynamic Stability Control System Connector Wiring Harness (0415-1A)
Courtesy of MAZDA MOTORS CORP.

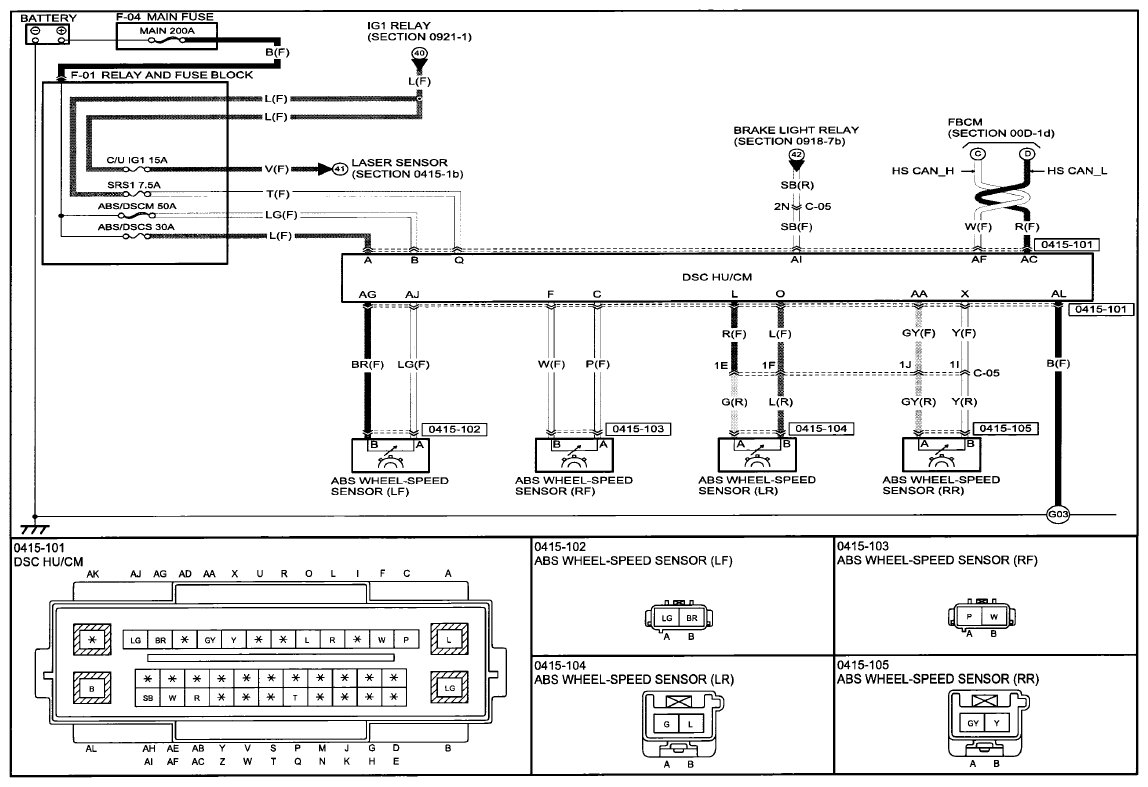

Fig 3: Dynamic Stability Control System Communication Diagram (0415-1B)
Courtesy of MAZDA MOTORS CORP.

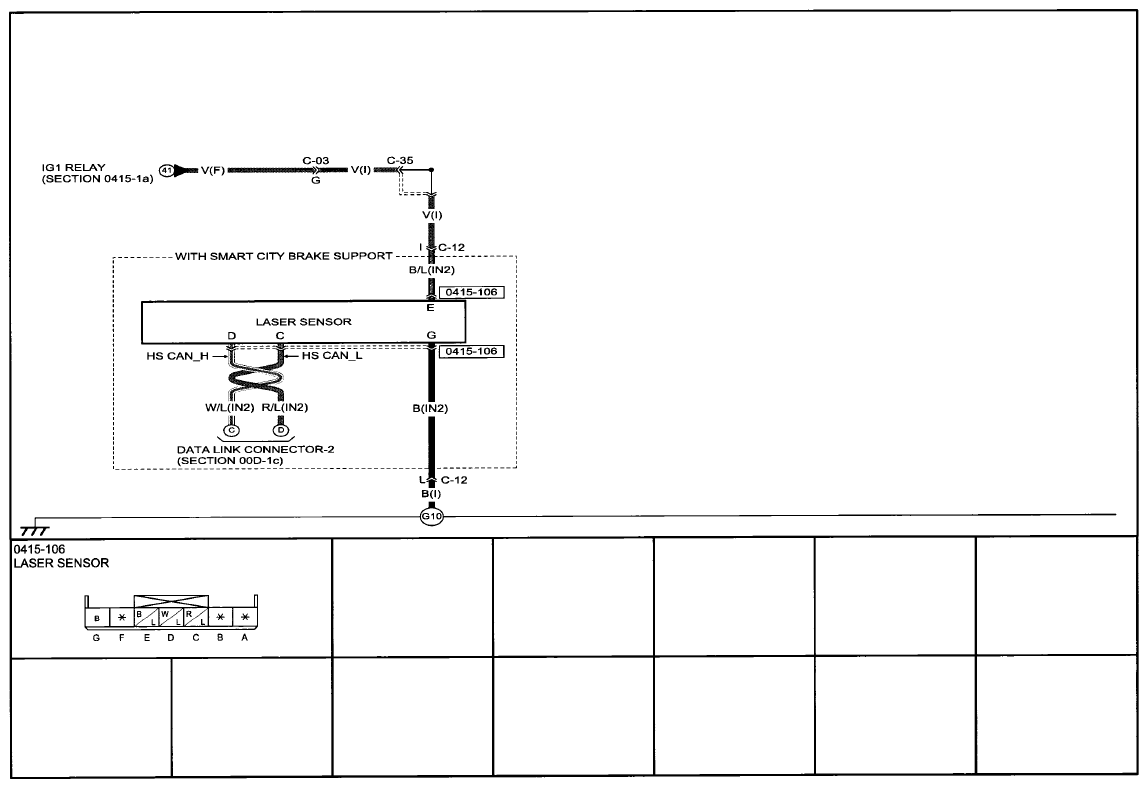

Fig 4: Dynamic Stability Control System Connector Wiring Harness (0415-1B)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
