Power Steering Oil Pump Removal/Installation

  1. Remove the drive belt. (See DRIVE BELT REPLACEMENT [LF] )
  2. Remove in the order indicated in the illustration.
  3. Install in the reverse order of removal.

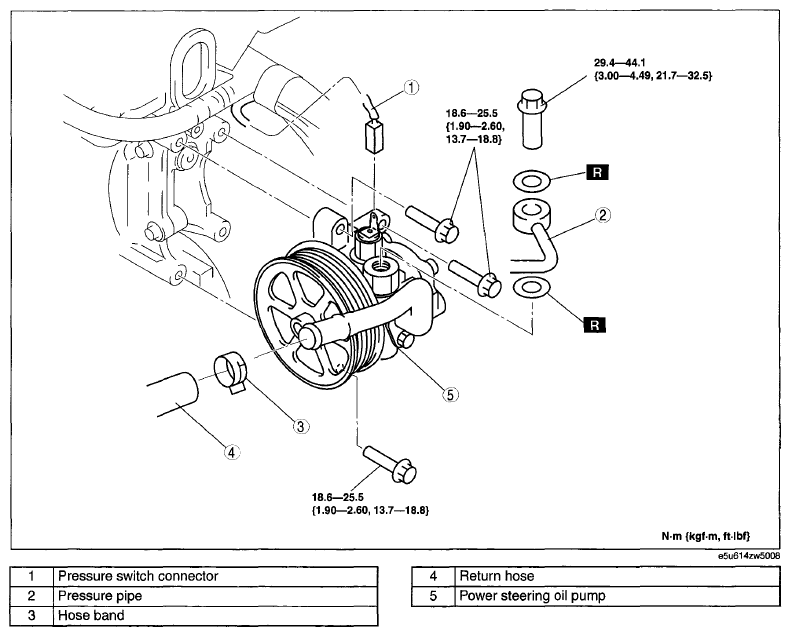

    Fig 1: Power Steering Oil Pump Components With Torque Specifications
    G06150576Courtesy of MAZDA MOTORS CORP.
