Instrument Cluster Removal Note

  1. Rotate the instrument cluster in the direction of the arrow and remove the instrument cluster.

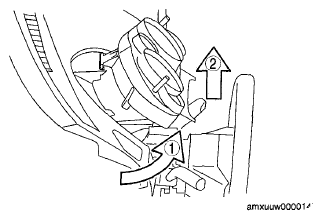

    Fig 1: Removing Instrument Cluster
    G06149183Courtesy of MAZDA MOTORS CORP.
