Partition Board Removal/Installation

  1. Remove the fasteners.
  2. Remove the partition board.
  3. Install in the reverse order of removal.

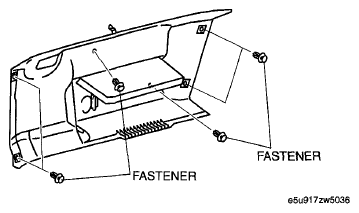

    Fig 1: Partition Board Fasteners
    G06149776Courtesy of MAZDA MOTORS CORP.
