Camber Adjustment

Loosen the fixing nut of the adjusting cam bolt (rear lateral link (lower)).

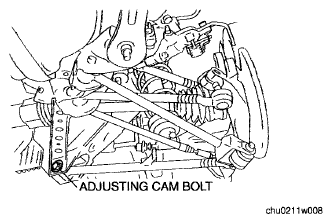

Fig 1: Adjusting Cam Bolt
Courtesy of MAZDA MOTORS CORP.

Rotate the adjusting cam bolt in either direction to adjust the camber.

Vehicle equipped with 16-inch wheel

CAMBER REFERENCE

Vehicle height⁽¹⁾

Camber

354-363 {14.0-14.2}

-1°33'

364-373 {14.4-14.6}

-1°18'

374-383 {14.8-15.0}

-1°04'

384-393 {15.2-15.4}

-0°54'

394-403 {15.6-15.8}

-0°45'

⁽¹⁾	From the end of the rear fender to the center of the wheel (mm {in})

Fig 2: Adjusting Cam Bolt Direction

Courtesy of MAZDA MOTORS CORP.

Vehicle equipped with 17-inch wheel

CAMBER REFERENCE

Vehicle height⁽¹⁾

Camber

349-358 {13.8-14.0}

-1°42'

359-368 {14.2-14.4}

-1°25'

369-378 {14.6-14.8}

-1°11'

379-388 {15.0-15.2}

-0°59'

389-398 {15.4-15.6}

-0°49'

⁽¹⁾	From the end of the rear fender to the center of the wheel (mm {in})

ADJUSTING CAM CHART

Adjustment	Left wheel	Right wheel
Positive direction	Counterclockwise	Clockwise
Negative direction	Clockwise	Counterclockwise

NOTE:
