Under Cover Installation Note

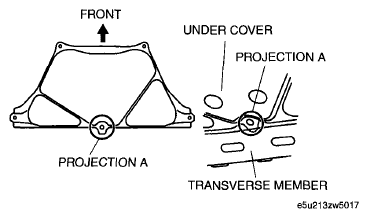

  1. Align projection A with the transverse member opening to temporarily support the under cover.
    Fig 1: Aligning Projection With Transverse Member
    G06151219Courtesy of MAZDA MOTORS CORP.

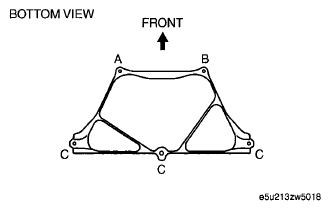

  2. Tighten the bolts in the order of A, B and C.
    Fig 2: Bolt Tightening Sequence
    G06151220Courtesy of MAZDA MOTORS CORP.
