Transverse Member Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.

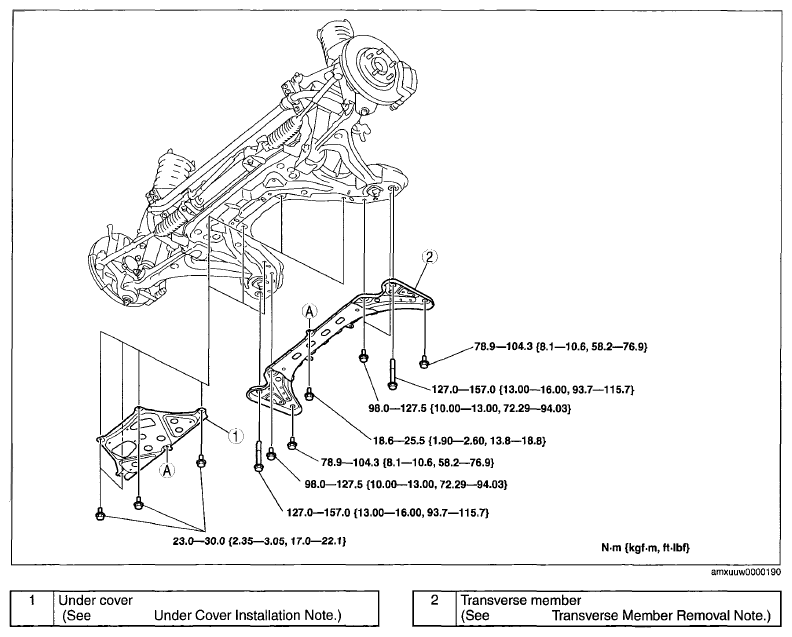

Fig 1: Transverse Member Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
