Stabilizer Bracket Installation Note

1. Apply rubber grease to the inner side of the stabilizer bushing.
2. Align the outer side of the stabilizer slide stopper with the stabilizer bushing.
3. Install the stabilizer bracket.

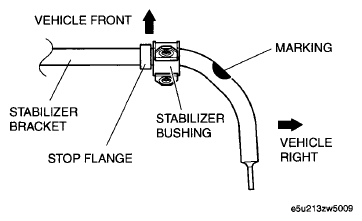

Fig 1: Stabilizer Bracket

Courtesy of MAZDA MOTORS CORP.
